HIWIN Miniature Linear Guide Slider EGH20 EGH20CA CNC Linear Guide Rail Slider Bearing
| Item | Specification |
|---|---|
| Series | HIWIN EG |
| Model | EGH20CA |
| Rail Size | 20 mm |
| Guide Type | Medium Load Linear Guide |
| Contact Structure | Four-row ball |
| Accuracy Grades | C / H / P |
| Preload Options | Z0 / Z1 |
| Material | Hardened bearing steel |
| Operating Temperature | -10°C ~ 80°C |

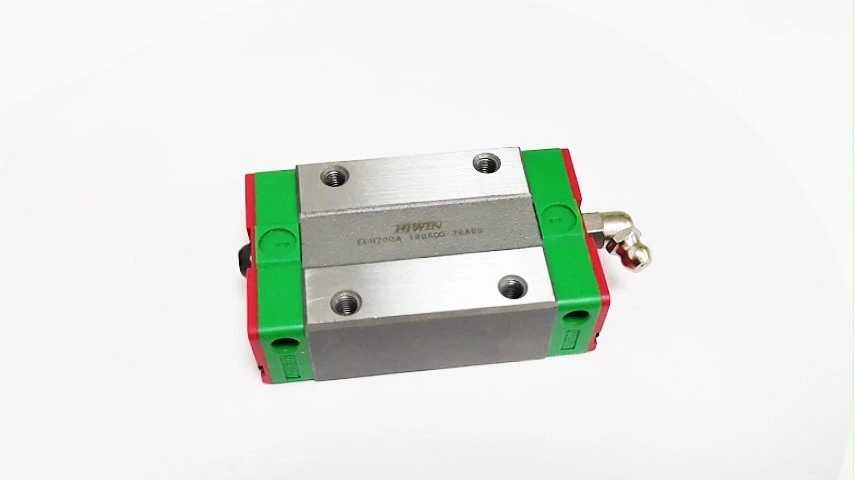

HIWIN EGH20CA Linear Guide Block
The HIWIN EGH20CA linear guide block is a medium-load linear motion component engineered for CNC machinery, industrial automation systems, and precision positioning equipment. As part of the HIWIN EG Series linear guides, the EGH20CA provides an optimal balance between load capacity, rigidity, smooth motion, and cost efficiency.
Features & Advantages
Compared with heavy-load HGH series, the EGH series linear guide features a lighter block structure and lower friction, making it especially suitable for high-speed motion, frequent positioning, and compact machine designs.
The EGH20CA block is fully compatible with HIWIN EGR20 linear guide rails, ensuring stable operation and easy system integration.
Application
HIWIN EGH20CA linear guide blocks are widely used in:
-
CNC routers and engraving machines
-
Automation production lines
-
Pick-and-place systems
-
Linear modules and actuators
-
Packaging and labeling machines
-
Electronics manufacturing equipment
EGH20CA vs HGH20CA – Selection Comparison
| Feature | EGH20CA | HGH20CA |
|---|---|---|
| Load Capacity | Medium | Heavy |
| Block Size | Compact | Larger |
| Rigidity | Medium | High |
| Friction | Lower | Higher |
| Recommended Use | Automation, light CNC | Machining centers |
FAQ
Q1: What is EGH20CA used for?
EGH20CA is designed for medium-load CNC machines, automation equipment, and precision motion systems.
Q2: Is EGH20CA compatible with EGR20 rail?
Yes. It is fully compatible with HIWIN EGR20 linear guide rails.
Q3: Can EGH20CA replace HGH20CA?
For applications without heavy load or high rigidity requirements, EGH20CA can be a cost-effective alternative.
Q4: What preload should I choose?
Z0 for smooth motion and high speed; Z1 for increased rigidity and accuracy.
