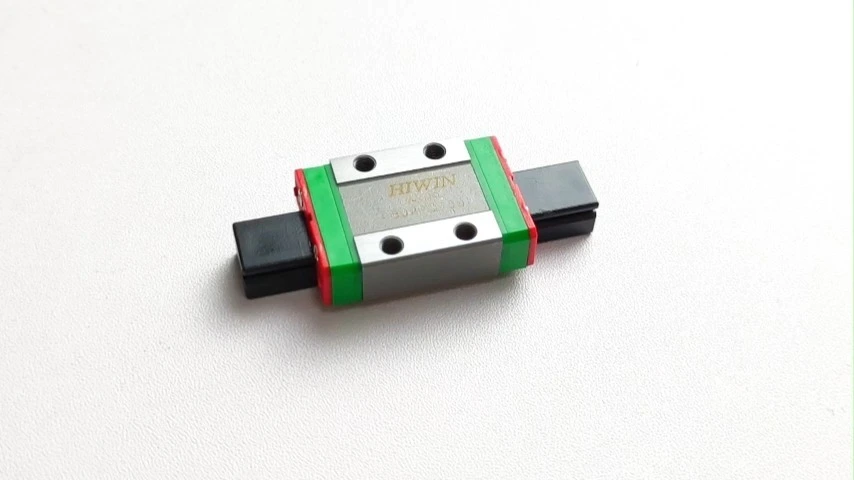

Hiwin MGN9C Mini Miniature Linear Guideway Linear Guide Block
| Specification | Value |
|---|---|
| Model | MGN9C |
| Block Type | Short carriage, flange-less |
| Rail Size | 9 mm width |
| Load Type | Light to medium load |
| Structure | 4-row circular arc design |
| Preload Options | Z0 / ZA |
| Accuracy Grades | C / H / P |
| Material | Bearing steel |
| Interchangeability | Fully compatible with MGN9 rail |
HIWIN MGN9C Miniature Linear Guide Block
The MGN9C Miniature Linear Guide Block is engineered for compact motion systems that require exceptional accuracy, smooth linear travel, and stable load performance. Featuring a four-row ball circulation structure, MGN9C delivers high rigidity and equal load ratings in all directions. It is ideal for medium-load applications in automation, CNC mini-machines, measuring equipment, and lightweight robotics.
Features & Advantages
The HIWIN MGN9C is a premium 9mm wide miniature linear guide featuring light (C) preload for exceptionally low friction and smooth, precise motion. Ideal for high-precision instruments, optical devices, semiconductor equipment, and advanced 3D printers where minimal resistance and precise positioning are critical.
Application
The MGN9C miniature guide block is widely used in precision compact systems, including:
3D printers and laser engraving machines
Desktop & mini CNC machinery
Linear modules and micro linear stages
Small automation equipment
Optical instruments and sensors
Pick-and-place and lightweight robotic systems
Medical analysis and diagnostic devices
Advantages
Excellent stability during high-frequency repetitive motion
Supports long continuous operation with minimal wear
Drop-in replacement for Hiwin MGN9C
Customizable rails: length, end machining, preload
Suitable for OEM/ODM mass production and engineering projects
100% QC before shipment with inspection reports available
FAQ
Q1: Is your MGN9C compatible with HIWIN?
Yes. All dimensions match HIWIN’s MGN9C standard, making replacement fully compatible.
Q2: Can I order MGN9C with corresponding rails?
Yes. We supply matched MGN9 rails, available in custom lengths.
Q3: What accuracy grades do you offer?
We provide C, H, and P grades depending on your precision requirements.
Q4: Do you accept OEM branding?
Yes, including logo printing, packaging, and bulk customization.
