Hiwin MGN9H Miniature Linear Guide Rail 9mm Rail for CNC & High Rigidity Apps
| Specification | Value |
|---|---|
| Model | MGN9H |
| Block Type | Long carriage, flange-less |
| Rail Width | 9 mm |
| Load Capacity | Higher than MGN9C |
| Structure | 4-row ball circulation |
| Preload Options | Z0 / ZA |
| Accuracy Grades | C / H / P |
| Material | Bearing steel |
| Compatibility | HIWIN MGN9 rail |

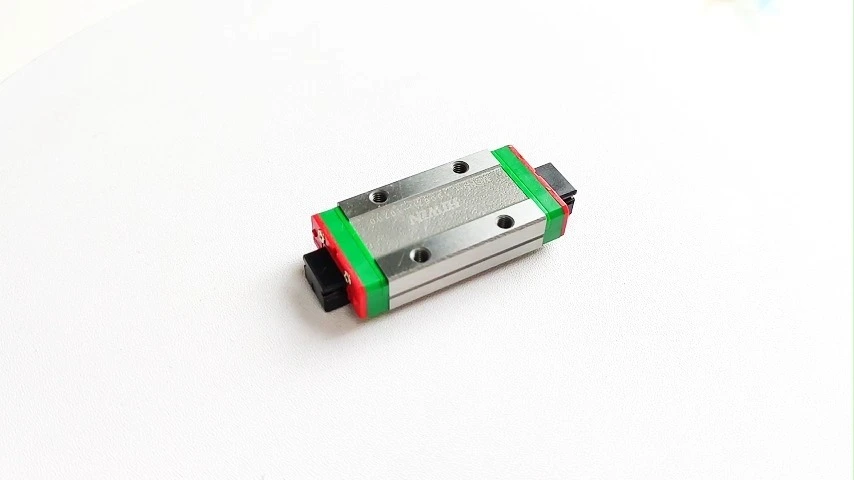

Hiwin MGN9H Mini Linear Guide Block
The MGN9H Miniature Linear Guide Block is designed for compact precision motion systems requiring higher load capacity and rigidity than standard short blocks. As the long-type carriage in the MGN9 series, MGN9H provides improved stability, reduced pitching and yawing, and enhanced load distribution. It is widely used in CNC mini-machines, automation modules, and precision instruments where smooth motion and structural rigidity are critical.
Original HIWIN MGN9H Miniature Linear Guideway
Built for demanding compact applications. The HIWIN MGN9H is a robust 9mm wide miniature linear guide featuring standard (H) preload for high rigidity, excellent vibration resistance, and precise motion under load.
Application
The MGN9H miniature guide block is ideal for applications requiring compact size with enhanced rigidity:
Mini CNC machining centers
High-precision 3D printers (X/Y/Z axes)
Linear modules and micro positioning stages
Pick-and-place automation systems
Optical inspection and measuring equipment
Semiconductor and electronics assembly equipment
Medical devices requiring precise linear motion
FAQ
Q1: What is the difference between MGN9H and MGN9C?
MGN9H is a long-type block offering higher rigidity and better resistance to moment loads compared to the shorter MGN9C.
Q2: Is this compatible with original HIWIN rails?
Yes. Dimensions fully comply with HIWIN MGN9 standards for direct replacement.
Q3: Can you supply complete rail and block sets?
Yes. We offer matched MGN9H blocks with customized MGN9 rail lengths.
Q4: Do you support OEM branding and bulk supply?
Yes. OEM packaging, labeling, and mass production are supported.
