Hiwin MGN12C Linear Guide Rails Slide Block Linear Guide Rail MGNR12 MGN12 CNC
Brand & Model: HIWIN MGN12C
Rail Width: 12 mm
Preload Grade: C (Light Preload)
Carriage Type: Single Flange, Standard
System: Monorail Miniature Linear Guideway
Accuracy Grade: Typically available in Normal (N) and High (H) precision grades.
Material: High-carbon chromium bearing steel, hardened and precision ground for durability.
Sealing: Effective integrated seals to protect the ball recirculation system from contaminants.
Package Contents: One matched set including a precision linear rail and one carriage block.

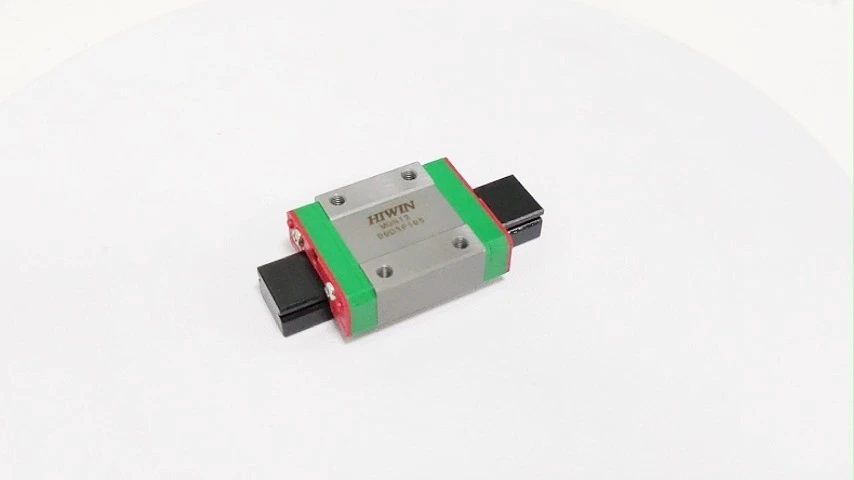

HIWIN MGN12C Miniature Linear Guide Block
The MGN12C Miniature Linear Guide Block is designed for compact motion systems that demand smooth linear movement, high positioning accuracy, and stable performance. As the short-type carriage in the MGN12 series, MGN12C provides an excellent balance between compact size and load capacity, making it suitable for a wide range of light-to-medium load applications in automation and precision equipment.
MGN12C Mini Linear Guide Block
Meet the HIWIN MGN12C—where larger miniature size meets refined motion performance. With a 12mm rail width providing increased stability and load capacity over smaller counterparts.
Application
MGN12C miniature linear guide blocks are widely used in:
-
Desktop and compact CNC machines
-
3D printers and laser engravers
-
Linear modules and positioning stages
-
Automation equipment and assembly lines
-
Robotics and pick-and-place systems
-
Optical inspection and measuring devices
-
Medical and laboratory equipment
FAQ
Q1: What is the difference between MGN12C and MGN12H?
MGN12C is a short-type block offering a more compact design, while MGN12H is a long-type block with higher rigidity and moment load capacity.
Q2: Is this compatible with original HIWIN rails?
Yes. Dimensions and mounting standards fully comply with HIWIN MGN12 specifications.
Q3: Can you supply matched rails and blocks?
Yes. We provide complete MGN12C rail and block sets with customized lengths.
Q4: Do you support OEM branding and bulk orders?
Yes. OEM packaging, labeling, and mass production are supported.
