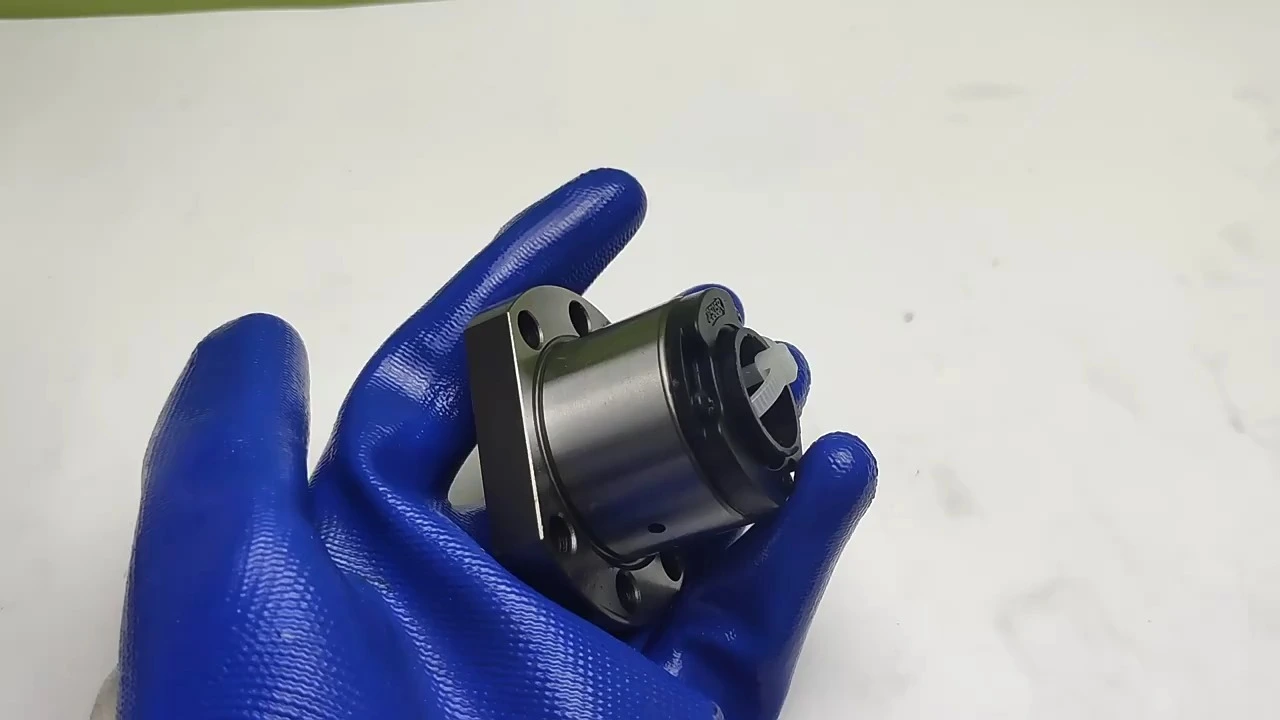

SFS02505 Ball Screw 5mm Precision Miniature Ball Screw for Compact Linear Motion
| Model | SFS02505 |
| Shaft Diameter | 5 mm |
| Lead (Pitch) | 5 mm |
| Accuracy Grade | C5 / C7 |
| Nut Type | Cylindrical or flange type |
| Material | GCr15 / SUJ2 bearing steel |
| Hardness | HRC 58–62 |
| Recirculation Type | Internal circulation |
| Efficiency | ≥ 90% |
| Preload | Optional (zero-backlash available) |
| Dynamic Load Rating | Based on nut model |
| Operating Temperature | –20 °C ~ +80 °C |
| Lubrication | Grease or oil lubrication |
| Length | Customizable upon request |
Product detail
The SFS02505 Ball Screw is a miniature precision linear transmission component designed for compact motion systems that demand high accuracy and smooth operation.
Featuring a 5mm screw shaft and 5mm lead, this small-size SFS ball screw converts rotary motion into precise linear motion with excellent efficiency and repeatability.
Its recirculating steel ball structure ensures low friction, minimal backlash, and long operating life.
Manufactured from hardened bearing steel (GCr15 / SUJ2) and finished by precision grinding, the SFS02505 provides superior accuracy, quiet performance, and stable operation even under continuous micro-motion cycles.
Features
This model is ideal for miniature automation equipment, optical devices, medical instruments, and small CNC stages, where space is limited but accuracy cannot be compromised.
Miniature Size (Ø5mm Shaft):
Perfect for compact or lightweight automation systems.
High Precision Lead (5mm):
Provides consistent positioning with minimal pitch error.
Smooth Linear Motion:
Recirculating ball design minimizes friction and vibration.
High Efficiency (≥90%):
Low torque requirement and excellent energy transmission.
Zero Backlash Option:
Optional preloaded nut for precise motion control.
High Rigidity & Durability:
Hardened steel structure ensures long service life.
Quiet Operation:
Optimized ball return path reduces noise during high-speed travel.
Custom Length Available:
Shaft length and nut type can be tailored for OEM applications.
Product parameters
Applications
Miniature CNC machinery
Optical measuring and inspection devices
Medical automation systems
Precision linear actuators
3D printers and laboratory instruments
Semiconductor and micro-positioning equipment
Robotics and pick-and-place modules
