High Precision DFS1605 Ball Screw | Durable C7 Grade Rolled Ball Screw for CNC Machines and Automation Equipment
| Screw Diameter | 16 mm |
| Lead (Pitch) | 5 mm |
| Accuracy Grade | C7 (Optional: C5, C10) |
| Thread Direction | Right-hand (customizable) |
| Material | GCr15 Bearing Steel / SUS304 (optional) |
| Nut Type | Single Nut / Double Nut (optional) |
| Shaft End Machining | Customized according to drawing |
| Preload | Optional (P0–P2) |
| Lubrication | Pre-greased or oil lubrication |
| Length | Customizable up to 3000 mm |
Product detail

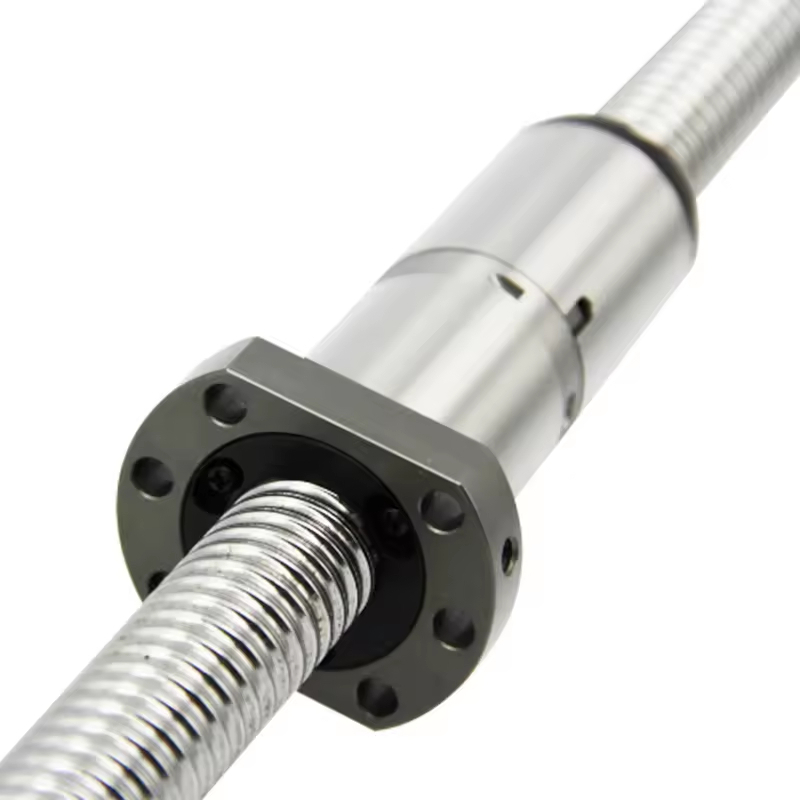

The DFS1605 Ball Screw is a high-precision transmission component designed to convert rotary motion into linear motion with minimal friction. Manufactured with advanced rolling technology and strict quality control, it ensures smooth motion, high positioning accuracy, and long service life.
It’s fully compatible with TBI and other international standards, making it an ideal replacement or upgrade option for CNC machinery, automation systems, and linear motion devices.
Key Features
The DFS1605 Ball Screw offers smooth, accurate, and efficient linear motion for precision machinery. Built with C7-grade rolled technology and high-strength GCr15 bearing steel, it ensures excellent wear resistance, low noise, and reliable performance under high load. Compatible with TBI, HIWIN, and other standard systems, it is the perfect choice for CNC machines, automation equipment, and linear actuators.
High Precision Transmission
Rolled with C7-grade accuracy for stable and smooth movement.
Low Friction & Noise
Enhanced surface finish and ball circulation design reduce noise and wear.
Durable Material
Made of high-quality GCr15 bearing steel, heat-treated for superior hardness and lifespan.
High Efficiency
Compared to lead screws, ball screws deliver higher efficiency and reduced energy loss.
Customizable Options
Support for custom lengths, end machining, nuts, and preloads.
Interchangeable Standard
Compatible with TBI, HIWIN, and other popular ball screw brands.
Product parameters
Applications
CNC Machining Centers & Lathes
3D Printers & Laser Cutting Machines
Precision Positioning Systems
Industrial Automation Equipment
Linear Actuators & Robotics
Packaging and Printing Machinery
