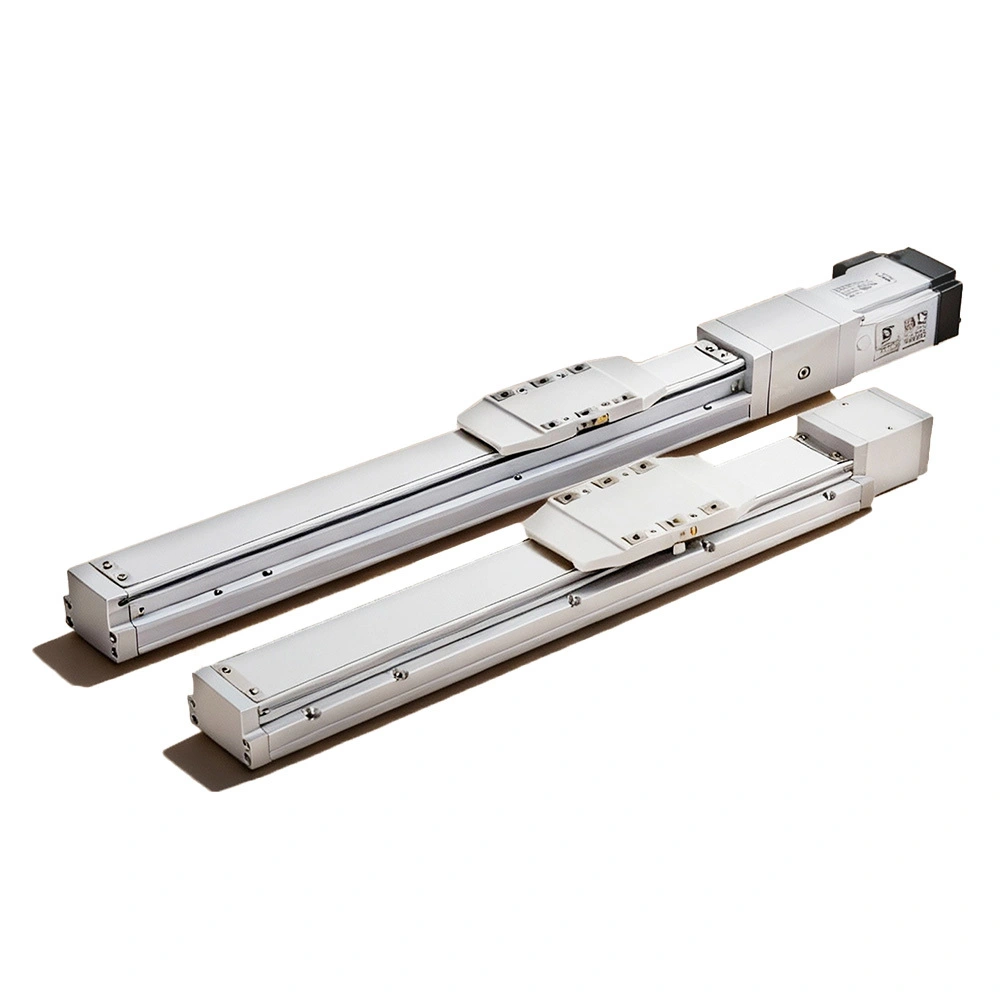

GTH4 Built-in Ball Screw Actuator | Compact Precision Linear Module
| Feature | Data |
| Model | GTH4 (Built-in Type) |
| Drive Mechanism | Precision Ball Screw |
| Base Width | 40mm |
| Repeatability | +/- 0.01mm |
| Max Horizontal Payload | Up to 15kg |
| Max Vertical Payload | Up to 5kg |
| Screw Lead Options | 2mm, 4mm,5mm,10mm |
| Effective Stroke | 50mm - 800mm (Customizable) |
Product detail
Maximum Rigidity in a Minimal Footprint
The GTH4 Series is engineered for applications where space is at a premium but performance cannot be compromised. By utilizing a built-in (integrated) guide rail structure, the GTH4 reduces the overall height and width compared to traditional bolt-on modules. This design not only saves space but also enhances the structural integrity and straightness of the linear motion.
Key Advantages
📐 Integrated Rail Technology:
The guide rail is embedded directly into the high-strength aluminum base. This eliminates the "stacking error" of external rails, providing superior parallelism and a lower center of gravity.
🎯 Professional-Grade Precision
Equipped with a precision-rolled C7 ball screw, the GTH4 delivers a repeatability of +/- 0.01mm, meeting the strict requirements of semiconductor and medical industries.
⚡ Sleek & Slim Profile
With a body width of only 40mm, the GTH4 is ideal for multi-axis configurations (XY/XYZ) in compact desktop machines or laboratory instruments.
🛡️ Smooth & Quiet Operation
The optimized ball circulation system within the built-in rail reduces friction and noise, ensuring a stable 500mm/s - 800mm/s velocity even under high-cycle workloads.
Product parameters
Engineering Resources
CAD Models: Downloadable STEP/IGS files to accelerate your design phase.
Mounting Brackets: We offer standard XY/XYZ connection plates specifically for the GTH4.
Expert Consulting: Contact our engineers for a custom motor-match and load calculation report.
