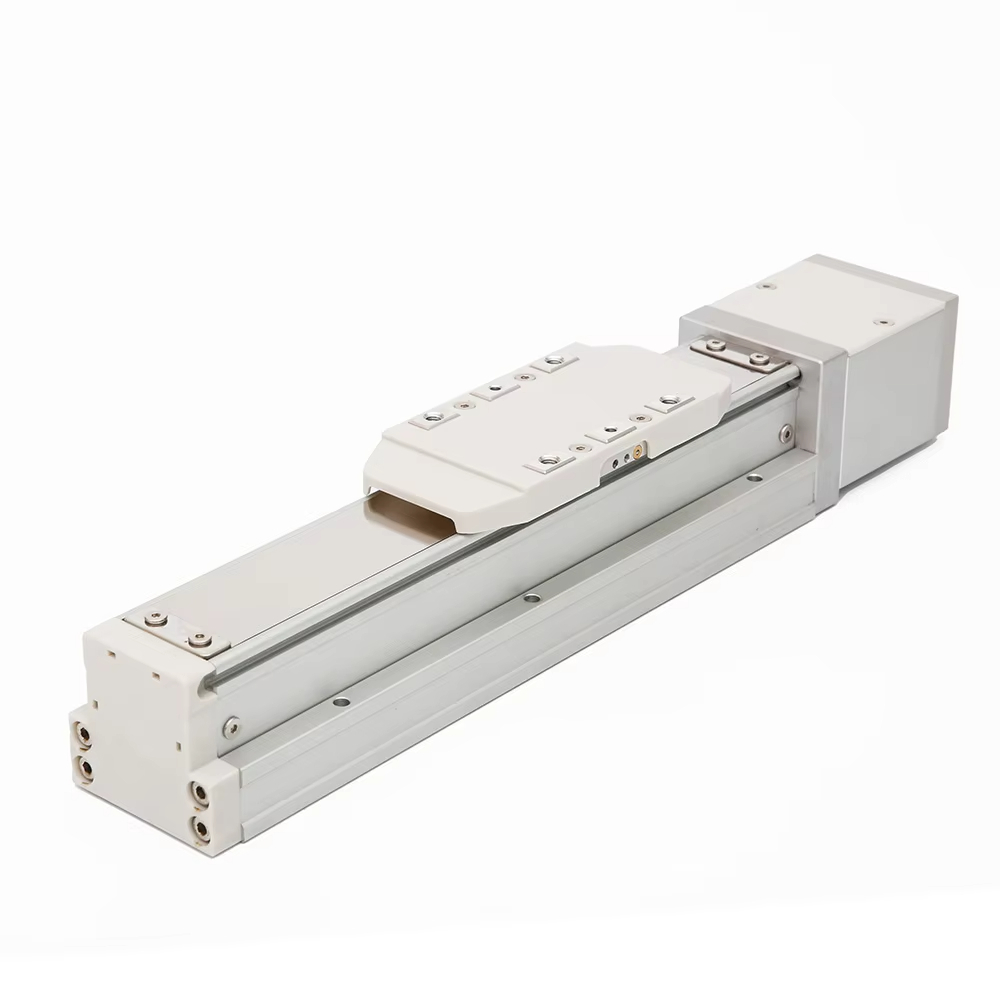

GTH5 Compact Precision Linear Module | High-Speed Ball Screw Actuator
| Feature | Technical Data |
| Drive System | Precision Ball Screw (C7 Grade) |
| Repeatability | +/-0.01mm |
| Max. Velocity | Up to $1000mm/s |
| Max. Payload | Horizontal: 15kg - 30kg(Depending on Lead) |
| Body Width | 50mm (Compact Series) |
| Effective Stroke | 50mm - 800mm (Customizable) |
| Material | Anodized Aerospace Aluminum |
Product detail
The GTH5 Series is the industry standard for precision in a compact form factor. Engineered with a high-performance ball screw drive and an integrated linear guide system, the GTH5 provides ultra-smooth motion and sub-micron repeatability. It is the perfect solution for space-constrained applications like medical lab automation, electronics assembly, and semiconductor inspection.
🚀 Typical Applications
Electronics & SMT: Precise placement of micro-components and PCB inspection.
Medical & Lab Automation: Liquid handling, sample sorting, and diagnostic equipment.
Optical & Laser: Camera positioning and precision laser marking.
Semiconductor: Wafer handling and cleanroom-compatible automation.
🛠️ Engineering & Integration
Motor Support: Compatible with 100/200W Servo motors and NEMA 17/23 Stepper motors.
CAD Readiness: Downloadable 3D STEP/IGS files for instant design-in.
Flexible Mounting: T-slots and standard mounting holes for rapid installation.
