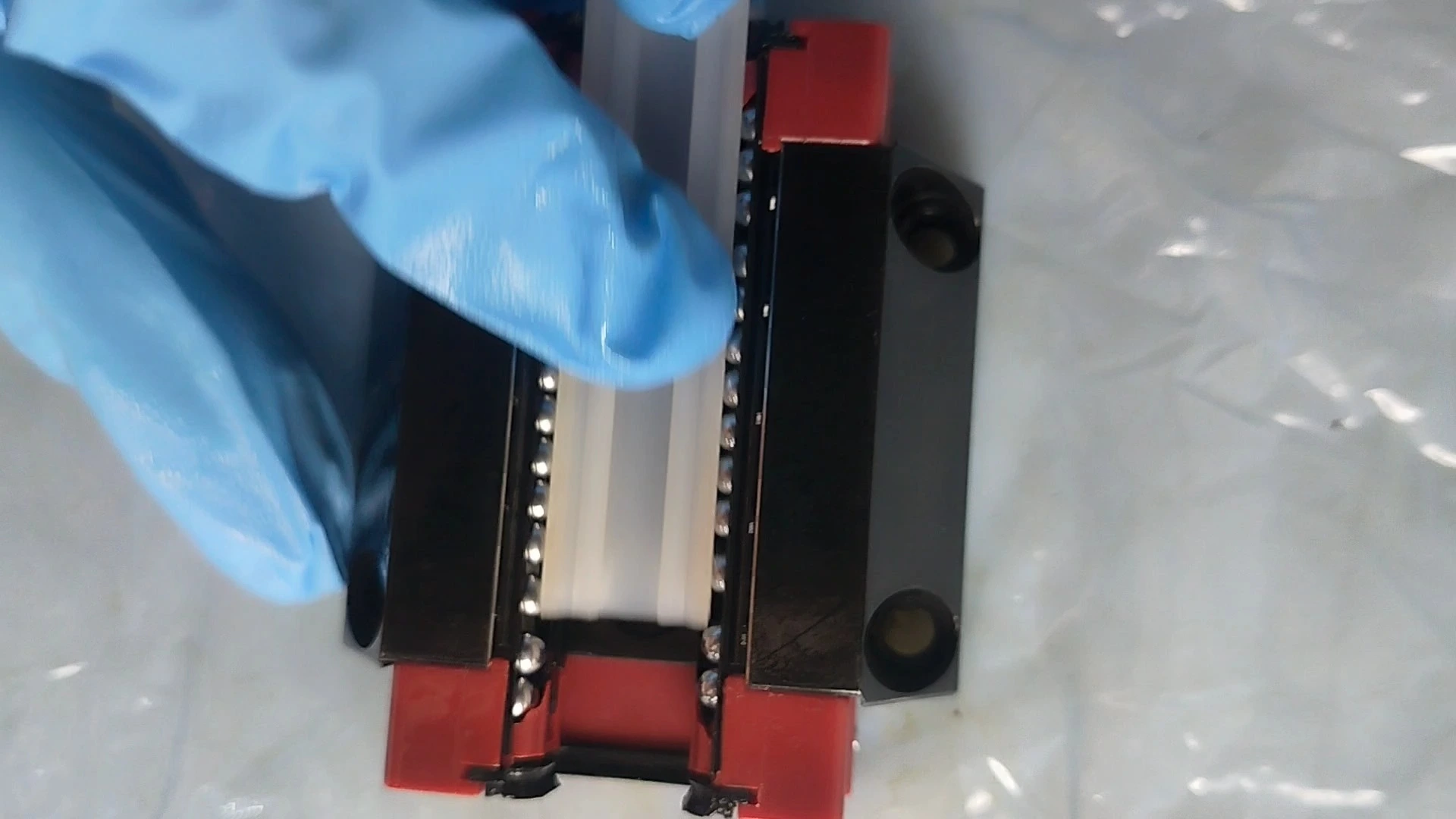

Schneeberger BM W 20AG2V2 High-Rigidity Miniature Wide Linear Guide
Series: Schneeberger BM Miniature Guide
Rail Width: 20 mm
Carriage Type: Wide Carriage
Accuracy Grade: Standard (A)
Preload Level: Micro Preload (G2)
Sealing Type: Double-Side Contact Seals (V2)
Load Capacity: High Rigidity, Excellent Moment Resistance
Product Description:
The Schneeberger BM W 20AG2V2 is a high-performance miniature ball-type linear guide from the BM series. Engineered with a unique wide carriage design, it delivers exceptional moment resistance and rigidity within an ultra-compact footprint. Featuring micro-preload (G2) and efficient sealing (V2), this guide ensures high positioning accuracy, smooth motion, and extended service life. Perfect for demanding precision automation applications, it is widely used in semiconductor manufacturing, medical technology, and measurement industries.Schneeberger linear guide rails are available in the following accuracy classes:
- G0 Highly accurate
- G1 Very accurate
- G2 Accurate
- G3 Standard
Preload options for Schneeberger linear guide rails system are:
- V0 Very low
- V1 Low
- V2 Medium
- V3 High
Feature of BM W 20AG2V2
The Schneeberger BM W 20AG2V2 is a high-performance miniature ball-type linear guide from the BM series. Engineered with a unique wide carriage design, it delivers exceptional moment resistance and rigidity within an ultra-compact footprint. Featuring micro-preload (G2) and efficient sealing (V2), this guide ensures high positioning accuracy, smooth motion, and extended service life. Perfect for demanding precision automation applications, it is widely used in semiconductor manufacturing, medical technology, and measurement industries.
Application
The Schneeberger BM W 20AG2V2 is the ideal solution for high-end applications, including:
Semiconductor & Electronics Manufacturing: Wafer handling systems, chip mounters, wire bonders.
Precision Measurement & Inspection: CMM machines, optical measuring instruments, surface inspection systems.
Medical & Lab Automation: Robotic surgical systems, DNA analyzers, automated sample processing workstations.
Advanced Industrial Automation: Feed axes for precision CNC machinery, laser processing equipment, high-speed pick-and-place robots.
