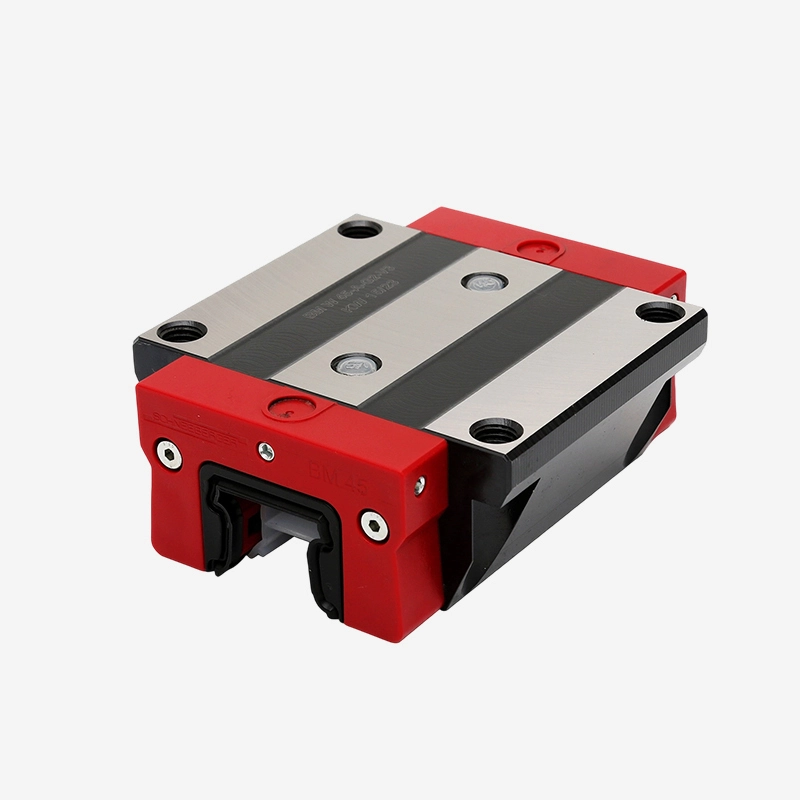

Schneeberger BM Profiled linear ball guides BM W 45-A-G2-V3
Stainless steel version
Linear ball guides made of stainless steel SCHNEEBERGER MONORAIL BM WR/SR stainless steel guideways are designed for applications where common anticorrosion coatings are not sufficient. This is the case if linear guides are used in an environment conducive to corrosion and in processes which cannot tolerate particle generation from anticorrosion coatings.
Product Description
Profiled guideway Monorail BM Balls
SCHNEEBERGER's MONORAIL BM linear ball guides features excellent dynamic properties and many commercial benefits. Designed with a small number of cleverly arranged components, it provides for excellent running properties due to the small number of transitions in the ball tracks, which lead to very quiet running, low pulsation and low friction as well as high travel speeds. The use of a trapezoidal rail section results in an extremely rigid guideway coupled with a substantial reduction in servicing time as additional wipers can be changed without dismantling the carriage. Complete sealing of the carriage guarantees maximum reliability coupled with a long service life. This robust and economical guideway rounds off SCHNEEBERGER's range of products for industrial applications with high demands on speed, reliability and consistant running properties.
Features of Schneeberger BM W 25-A-G3-V1
The Schneeberger BM W 25-A-G3-V1 is a linear ball bearing carriage designed for precision applications, and it comes with several notable features:
Smooth and Quiet Operation
Optimized ball track geometry minimizes friction and pulsation, enabling smooth motion, quiet running, and high travel speeds (up to 5 m/s) with rapid accelerations (up to 100 m/s²).
Versatile Lubrication Options
The carriage supports various lubrication methods, which enhances its adaptability across different operational environments.
Complete Sealing
A comprehensive sealing system protects the internal components from contaminants, ensuring reliability and prolonging service life.
Corrosion Resistance
Options for corrosion-resistant materials and coatings are available, making the carriage viable in environments where corrosion protection is critical.
Application Areas
● CNC Machinery and Machine Tools
Its high rigidity and load capacity make it ideal for machine tools and CNC systems, where precise and stable linear motion is critical.
● Automation and Robotics
The smooth and quiet operation, along with rapid acceleration, suits high-speed assembly lines and robotic positioning systems.
● Semiconductor and Electronics Manufacturing
Complete sealing and corrosion resistance are essential for maintaining performance in clean, controlled environments.
● Medical and Laboratory Equipment
Precision motion systems in imaging or diagnostic devices benefit from its low friction and accurate guidance.
