HIWIN MGN7C Miniature Linear Guide Block | Original MGN7 Linear Rail Carriage for Precision Motion
| Parameter | Specification |
|---|---|
| Model | Hiwin MGN7C |
| Block Type | Short block |
| Rail Width | 7 mm |
| Material | Stainless steel |
| Load Type | Circular-arc four-row design |
| Preload Options | Z0 / ZA |
| Accuracy Grades | C / H / P |
| Available Rail Lengths | Customizable |
| Interchangeability | 100% compatible with MGN7 series |

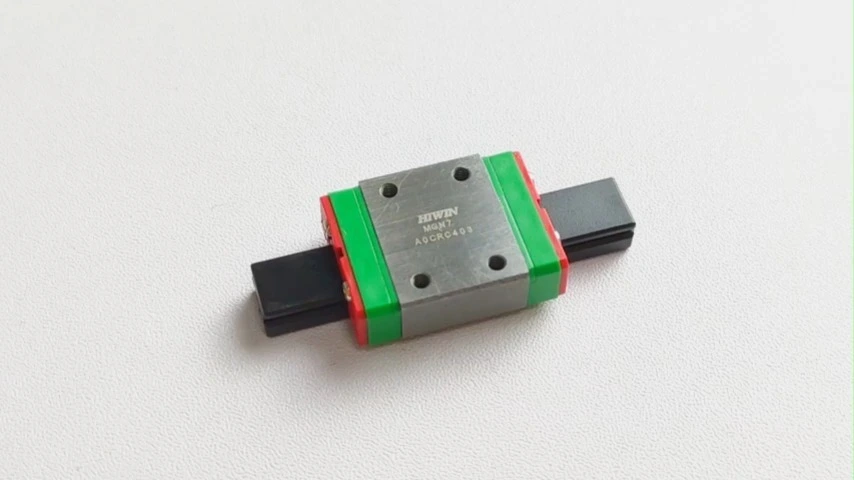

Hiwin MGN7C Miniature Linear Guide
The HIWIN MGN7C miniature linear guide block is part of HIWIN’s MGN Series, engineered for compact, lightweight, and high-precision linear motion applications. Designed with a two-row gothic-arch contact design, the MGN7C ensures smooth movement, low friction, and outstanding stability in limited installation spaces.
With its compact dimensions, the MGN7C is widely used in 3D printers, small CNC routers, measuring equipment, semiconductor devices, optical instruments, and other miniature linear motion mechanisms.
This block is fully compatible with HIWIN MG7 / MGN7 linear guide rails, providing high accuracy and long service life even in high-speed continuous operation.
Features & Advantages
Hiwin MGN7C miniature linear guide for compact, high-precision motion systems. Stainless steel, low friction, high rigidity. Ideal for 3D printers, automation, and CNC.
Application
The HIWIN MGN7C miniature guide block is suitable for:
3D printers
Small CNC engravers
PCB milling machines
Precision measuring systems
Semiconductor equipment
Medical devices
Optical instruments
Robotics end-effectors
Micro linear actuators
Electronic assembly automation
FAQ
Q1: Is the MGN7C an original HIWIN product?
Yes. Original HIWIN packaging and batch verification can be provided.
Q2: Which rail is compatible with the MGN7C block?
It is compatible with HIWIN MG7 / MGN7 linear guide rails.
Q3: What is the difference between MGN7C and MGN7H?
MGN7C: standard short block (compact)
MGN7H: long block for increased load capacity and rigidity
Q4: Is stainless steel available for MGN7C?
Yes. The stainless-steel version is suitable for clean-room, medical, or corrosion-resistant environments.
Q5: Can the MGN7C be used for 3D printers?
Yes. The MGN7 series is widely used in high-precision 3D printers, mini CNC, and compact automation.
