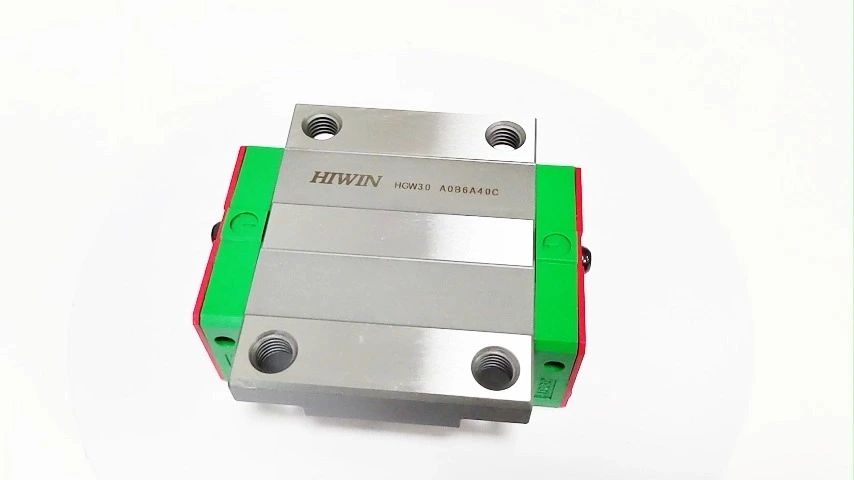

HIWIN HGW30CC Linear Guide Block – HG Series Wide Type Carriage for CNC Machine & Automation
| Item | Specification |
|---|---|
| Model | HGW30CC |
| Series | HIWIN HG (Wide type) |
| Rail Size | 30 mm |
| Rail Compatible Model | HGR30 |
| Block Type | Wide flange carriage (W) |
| Block Length | Standard (CC) |
| Preload Options | Z0 / ZA / ZF |
| Accuracy Grades | C / H / P / SP / UP |
| Load Capacity | Medium–heavy load |
| Application Focus | CNC machining, industrial automation, machine tools |
Hiwin HGW Series Linear Guide Blocks
(HGW15 / HGW20 / HGW25 / HGW30 / HGW35 / HGW45)
Wide-Body Design | High Load Capacity | Smooth & Precise Linear Motion
The HIWIN HGW Series is a wide-body, heavy-load linear guide block designed for industrial-grade precision motion systems.
With optimized four-row circular-arc contact and equal load ratings in all directions, the HGW series is ideal for applications requiring high rigidity, superior accuracy, and long service life. Perfect for CNC machines, automation systems, industrial robots, laser equipment, packaging machinery, and precision positioning devices.
Features & Advantages
Genuine HIWIN HG series carriage with a wide-flange design, delivering excellent rigidity and superior moment load resistance, perfect for heavy-duty industrial applications.
Application
CNC milling machines / CNC routers
Heavy-duty engraving & cutting machines
Robotics linear axes & gantry systems
Industrial automation lines & conveyors
Packaging machinery
Precision positioning systems
Linear actuator & single-axis modules
Measurement and inspection equipment
- HGW30CC is one of the most widely used blocks for medium-heavy load CNC systems.
❓ FAQ
Q1. Is this original HIWIN HGW30CC?
Yes, we supply genuine HIWIN parts with traceable identification and batch information.
Q2. Does HGW30CC fit HGR30 rail?
Yes, HGW30CC is the standard 30mm wide-type block for HGR30 rails.
Q3. Can I buy block only, or block + rail?
Both are available. We support small-quantity purchases and full machine-kit procurement.
Q4. Do you offer standard, long, or high-load blocks?
Yes, variations like HGW30HC / HGW30HA / HGW30HB are available upon request.
Q5. Can you customize rail length?
Yes, we offer custom cutting, machining and complete rail-block assemblies.
