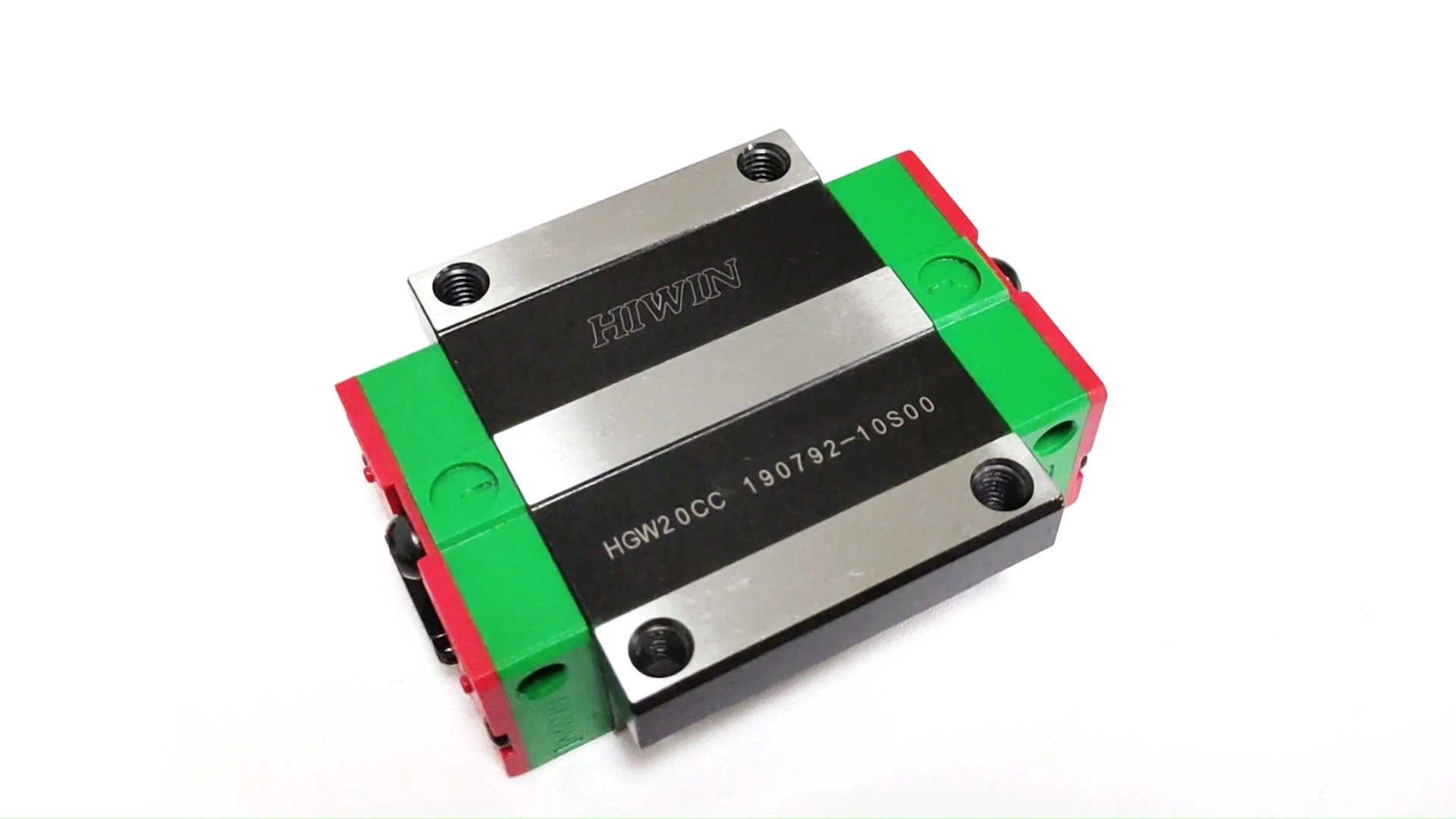

Hiwin HGW Series Linear Guide Block for Linear Rail – Precision Motion Component for CNC Machines
Series: HG series
Block Type: Flange type
Model Size: 15/20/25/30/35/45/55/65 mm
Load Capacitye: Higher (multi-directional)
Block Mounting: Mount from top or bottom
Product Description
Linear Guide Slider HGW
The HGW Series Linear Guide is a heavy-load, high-rigidity linear motion system designed for precise positioning in various industrial applications
Features of HG Series
The HIWIN HGW Series Linear Guide Block offers exceptional precision and smooth motion, ensuring optimal performance for your machine or equipment. Trust in HIWIN for reliable and durable linear motion solutions.
Wide Rail Profile
Broader rail and carriage design compared to standard HG Series, improving moment load resistance and distributing stress more evenly.
High Load Capacity
Optimized for heavy combined loads (radial, axial, and moment forces), ideal for large machinery or systems with uneven force distribution.
Extreme Rigidity
Reinforced structure minimizes deflection in high-stress environments (e.g., gantry mills, heavy presses).
Precision Grinding
High-accuracy ground rails and rolling elements (repeatability ±5μm or better).
Sealing and Lubrication
Multi-layer seals and grease fittings for durability in dusty, humid, or high-contamination environments.
Compatibility
May integrate with standard HG Series components (e.g., blocks or accessories) for modular system design.
Applications
● Large CNC Gantry Systems: Multi-axis machining centers.
● Heavy Material Handling: Overhead cranes, palletizers.
● Industrial Presses: Stamping, forging equipment.
● Automotive Assembly Lines: Robotic welding/fixturing.
