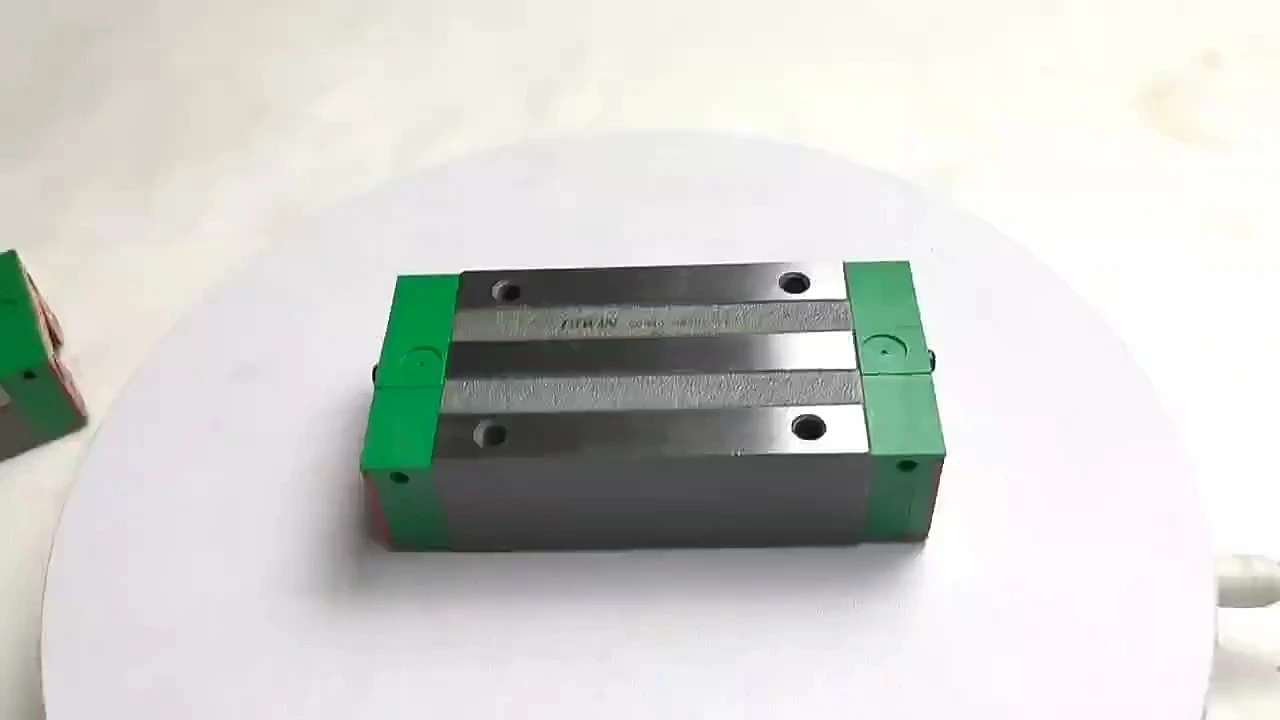

Hiwin CGH Heavy Load Linear Guide with High Moment Resistance
Brand: Hiwin
Item # : CGH-HA/CA
Series: CG series
Block Type: Square type
Model Size : 15/20/25/30/35/45 mm
Load Capacity: High (combined loads)
Precision: ±2–5μm
Product Description
The Hiwin CGH Series represents the pinnacle of high-rigidity and heavy-load linear guide technology. Engineered for the most demanding industrial environments, this series features a unique 4-way equal load capacity design, allowing it to handle substantial forces from all directions with exceptional stability. Its large contact area and optimized raceway geometry provide superior moment resistance, making it the ideal choice for heavy-duty machining, large gantry systems, and high-precision equipment where unwavering rigidity is critical. The CGH series ensures lasting precision, reduced vibration, and enhanced performance under extreme conditions.
Product Description
The Hiwin CGH Series represents the pinnacle of high-rigidity and heavy-load linear guide technology. Engineered for the most demanding industrial environments, this series features a unique 4-way equal load capacity design, allowing it to handle substantial forces from all directions with exceptional stability. Its large contact area and optimized raceway geometry provide superior moment resistance, making it the ideal choice for heavy-duty machining, large gantry systems, and high-precision equipment where unwavering rigidity is critical. The CGH series ensures lasting precision, reduced vibration, and enhanced performance under extreme conditions.
Application
The Hiwin CGH series is engineered for heavy-duty industrial applications requiring maximum rigidity and load capacity
Heavy-Cutting Machine Tools:
Large CNC machining centers, boring mills, and gear cutting machine
Large Gantry Systems:
Gantry milling machines, bridge-type measuring machines, and material handling gantries.
High-Precision Equipment:
Semiconductor manufacturing equipment (e.g., steppers), precision grinding machines.
Industrial Automation:
High-load automation cells, press feed applications, and large robotic transfer units
