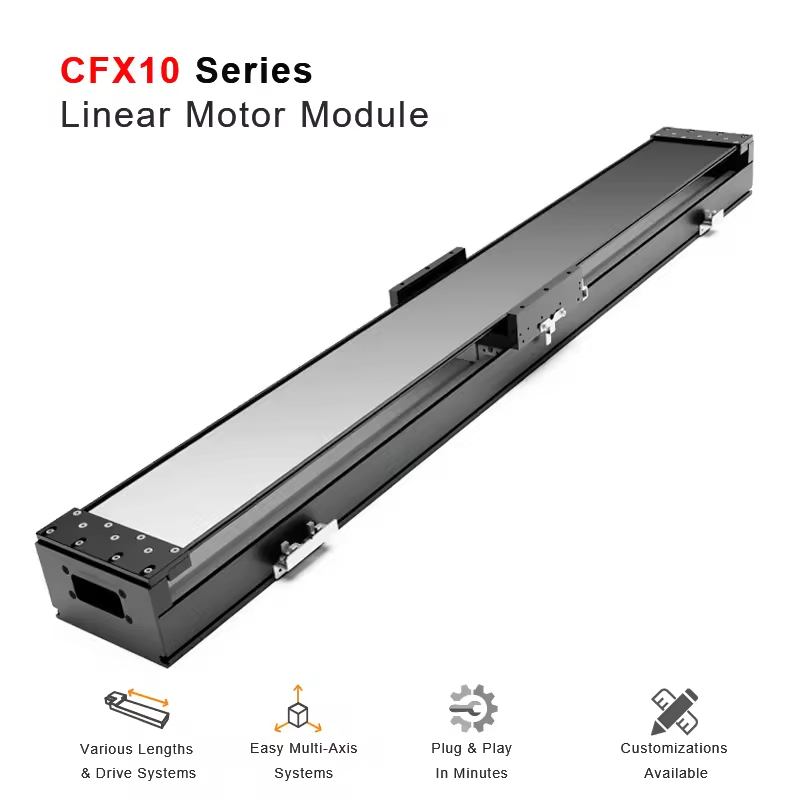

CFX10 Series High-Precision Linear Motor Module | 3m/s High Speed & 1μm Resolution Direct Drive Actuator
-
Structure: Semi-enclosed
. -
Maximum Stroke: 3812 mm
. -
Maximum Speed: 3 m/s
. -
Continuous Thrust Range: 24 N – 96 N
. -
Guide Rail Specification: 12-2
.
Unlock the Power of Direct Drive Motion
In the fast-evolving world of industrial automation, speed and precision are no longer optional—they are essential. The CFX10 Series by Chuang Feng Seiko is designed to bridge the gap between high-end performance and cost-effective integration.
Key Advantages
Precision at Scale
Equipped with 1μm magnetic or 0.5μm optical encoders, achieving a repeatability of up to ±2μm.
Extreme Speed & Acceleration
Reach speeds of 3m/s instantly, significantly reducing cycle times compared to ball screw systems.
Industrial-Grade Reliability
The semi-enclosed design protects core components while maintaining a compact profile (102mm base width).
Flexible Customization
Whether you need single or double sliders, THK/HIWIN rails, or custom sensor configurations (NPN/PNP), we tailor the module to your exact engineering requirements.
Product parameters
Application Areas
Semiconductor: Wafer handling and precision inspection.
Lithium Battery: High-speed electrode stacking and assembly.
FPD Industry: Flat panel display testing and laser cutting.
Bio-Tech: Automated laboratory liquid handling and sorting.
