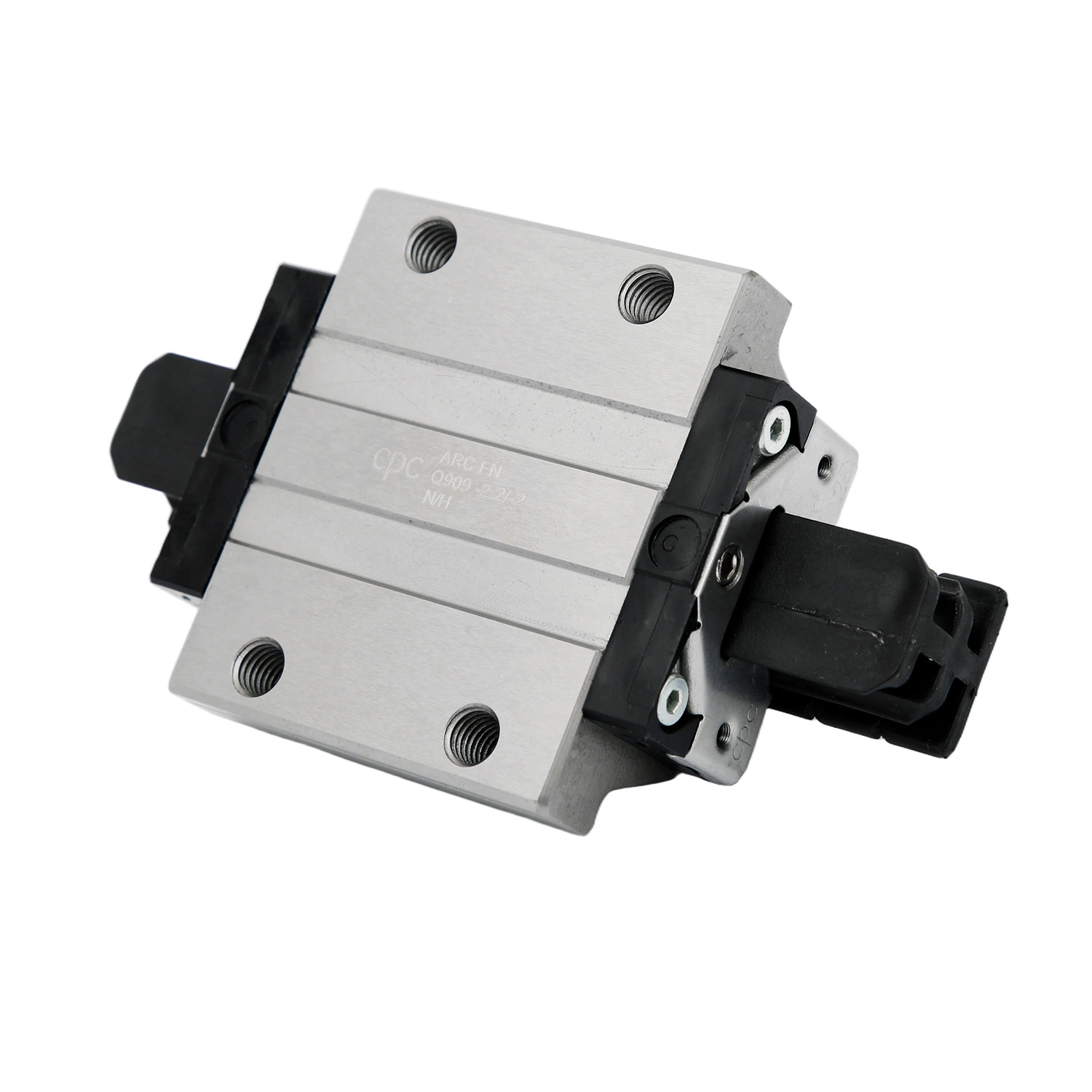

Standard 4-Row Ball Bearing Linear Guide ARC Series
Item # : ARC-FS/FN
Series: ARC series
Block Type: Flange type
Model Size : 15/20/25/30/35/45/55 mm
Seal type : Low friction(B), Standard( S)
Block length : long(L), standard(N), short(S)
Preload Class: VC/V0/V1/V2
Accuracy grade : UP, SP, P, H, N
Product Description
Standard 4-Row Ball Bearing Linear Guide
Our standard CPC ARC/HRC/ERC Linear Guide Series uses the O-type arrangement for its four-row ball circulation design. The 45-degree contact angle between the rails and balls allows our product to realize a four-directional equivalent load effect.
This model features a specially lengthened design moment arm, delivering higher moment capacity under the same external force, and demonstrating outstanding performance in high load, high torque, and high rigidity.
Features of ARC Series
Application
Suitable for 3D printers, the Manipulator industry, Engraving machines, and Automatic equipment
