SSR Series Linear Motion Guides for Precision Engineering Applications
Series: SSR series
Model Size: 15/20/25/35
Load Capacity: Light (~3–10kN dynamic)
Precision: High (±2μm)
Key Use Case: Compact, high-speed systems
Product Description

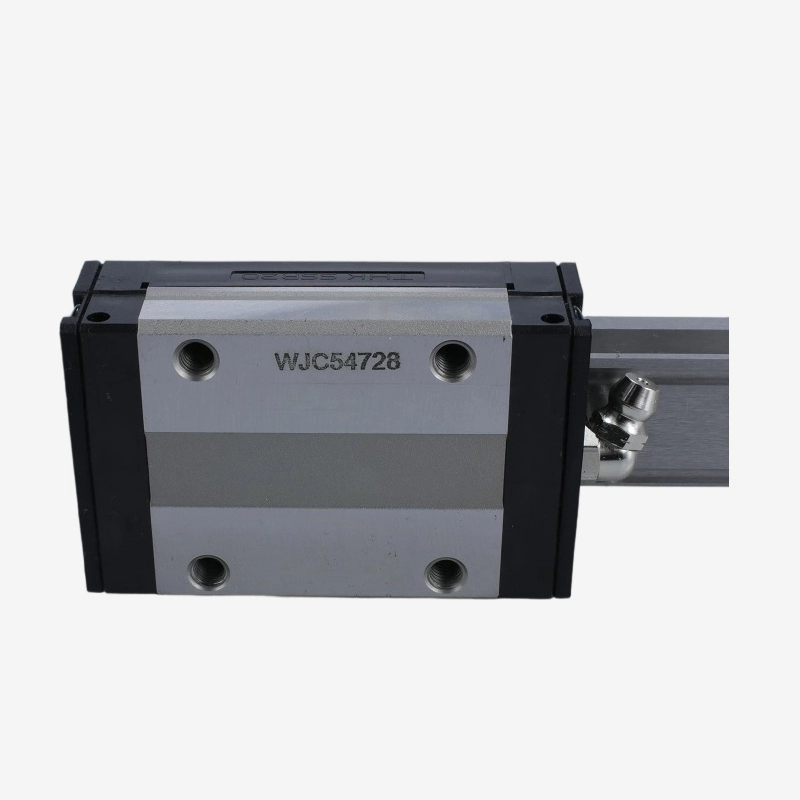

THK SSR Series Linear Guides
The SSR Series by THK is a compact, low-profile linear motion system designed for applications requiring space-saving design, light-to-medium loads, and high precision. It is ideal for small-scale automation, medical devices, and precision instruments.
Features of SSR Series
High precision and smooth motion guaranteed with SSR Series Linear Motion Guides. Features include a durable construction, low friction design, and easy installation. Upgrade your machinery with superior performance.
Ultra-Low Profile
Slim rail and block design (e.g., SSR15: 15mm height) for installations in tight spaces.
High Precision
Precision-ground rails achieve repeatability up to ±2μm (P/SP grade), suitable for delicate positioning tasks.
Lightweight & Compact
Aluminum or lightweight steel construction reduces system inertia, ideal for high-speed, low-load applications.
Smooth Motion
Optimized ball recirculation minimizes friction and vibration for quiet operation.
Corrosion Resistance
Optional stainless steel for cleanrooms, medical, or corrosive environments.
Easy Installation
Pre-drilled mounting holes and alignment grooves simplify integration into compact machinery.
Application Areas
● Medical Devices: Lab automation, surgical robots, imaging systems.
● Semiconductor Equipment: Chip handling, inspection stages.
● Desktop Machinery: 3D printers, PCB drills, small CNC machines.
● Optics & Measurement: Precision stages for laser alignment or microscopy.
