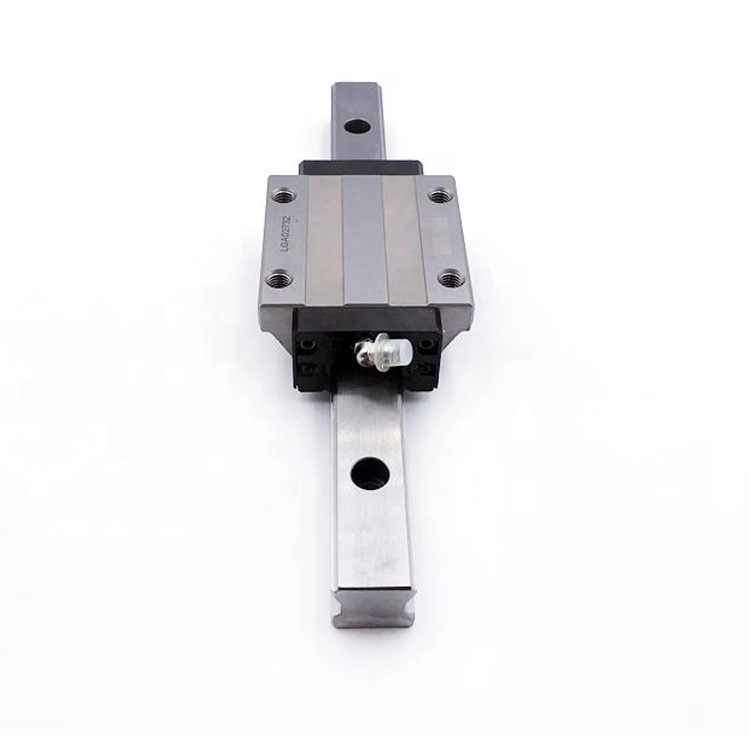

SHS15C Type Linear Guide Block 15mm Compact High Precision Linear Motion
| Parameter | Description |
|---|---|
| Model Type | SHS15C |
| Rail Width | 15 mm |
| Block Design | C Type (Compact / Short) |
| Contact Structure | Four-Row Rolling Contact |
| Material | Bearing Grade Steel |
| Accuracy Options | Standard / High |
| Preload Options | Light / Medium |
| Lubrication | Grease |
| Mounting Method | Top Mount |
| Typical Application | Compact CNC & Automation |
Product detail
The SHS15C type linear guide is designed for compact motion systems requiring high accuracy and smooth travel.
With a 15mm rail size and C-type short block structure, it is especially suitable for equipment where installation space is limited but motion precision remains critical.
The internal rolling system adopts a four-row contact configuration, allowing the guide to handle multi-directional loads while maintaining stable movement.
This structure helps reduce friction fluctuations and improves repeatability during frequent start-stop operation.
Precision machining and controlled heat treatment ensure consistent geometry, reliable performance, and long-term durability in light to medium-duty industrial environments.
Key Features of SHS15C Linear Guide
SHS15C type linear guides are widely applied in compact linear motion systems, particularly where installation space is limited and smooth, accurate movement is required.
The 15mm rail configuration offers a balanced solution for precision equipment and light automation systems.
Application
The SHS15C linear guide is commonly used in compact and precision-focused systems, including:
Small CNC machines
Desktop CNC routers and engravers
Automation modules with limited space
Inspection and measuring equipment
Precision positioning platforms
Its compact design makes it suitable for applications where both size and accuracy matter.
Installation & Maintenance
Ensure mounting surfaces meet flatness and alignment requirements
Tighten mounting bolts evenly to specified torque values
Apply lubrication at regular intervals to maintain smooth motion
Select preload according to accuracy and rigidity requirements
Proper installation helps maximize motion accuracy and service life.
Customization & Supply Capability
We support flexible supply options for different project needs:
Rail length customization
Accuracy grade and preload selection
OEM marking and customized packaging
Stable batch supply for automation projects
Technical support for selection and integration
Our solutions are suitable for long-term cooperation and industrial applications.
