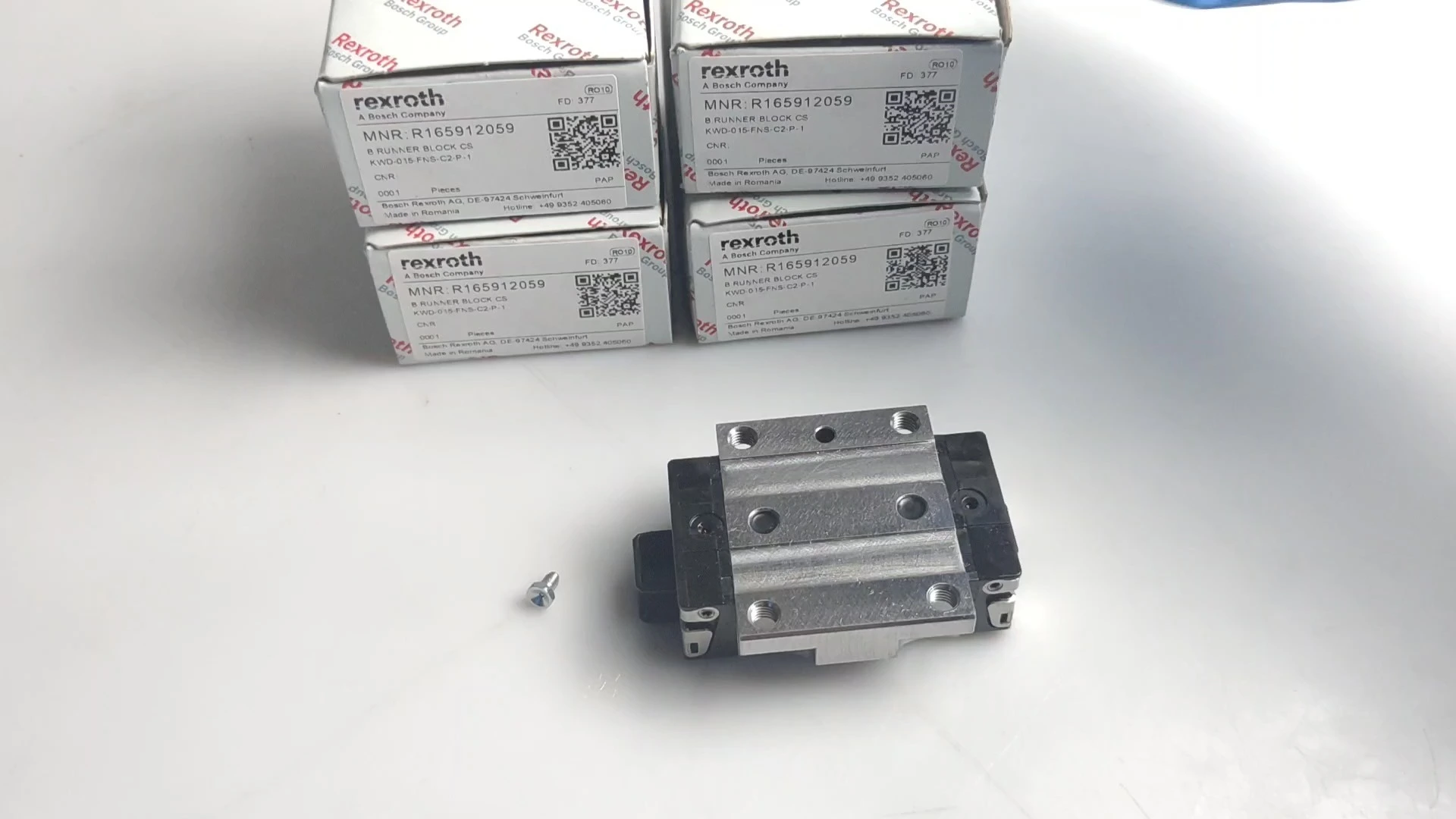

Rexroth R165912059 BALL RUNNER BLOCK CS KWD-015-FNS-C2-P-1
Material #: R165912059
Model : B.RUNNER BLOCK CS KWD-015-FNS-C2-P-1
System Type: Precision Ball Rail System
Load Capacity: High Performance
Accuracy Grade: Precision Class
Preload Options: Multiple levels available
Material: High-grade Bearing Steel
Surface Treatment: Anti-corrosion Coating
BALL RUNNER BLOCK CS KWD-015-FNS-C2-P-1
BALL RUNNER BLOCK CS KWD-015-FNS-C2-P-1
Ball runner block, FNS, size 15, steel CS, accuracy precision, average preload, without ball chain
The ball runner block is highly precise and characterized by the following product features:
Size 15
Format FNS: Width = flange, length = normal, height = standard
Runner block body made of unalloyed steel CS
Preload class C2: Medium preload
Accuracy class P: Precision
Without ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 75.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Unpacked Weight: 0.444 kg
Feature of Rexroth R165912059
🏗️ Superior Load Capacity
Optimized raceway geometry for enhanced load distribution
High load capacity in all directions (radial, reverse radial, and lateral)
Excellent moment resistance capabilities
🎯 High Precision Performance
Precision grinding technology ensures smooth motion characteristics
Exceptional positioning accuracy and repeatability
Low noise operation even at high speeds
🛡️ Advanced Sealing Technology
Multi-stage sealing system with integrated scrapers
Comprehensive protection against contaminants and debris
Extended service life in harsh operating conditions
⚙️ Enhanced Rigidity & Stability
Special preload options for optimal stiffness
Minimal deformation under heavy loads
Stable operation in demanding conditions
Application
High-precision machine tools
CNC machining centers
Industrial automation systems
Semiconductor manufacturing equipment
Precision measuring instruments
Robotics and handling systems
