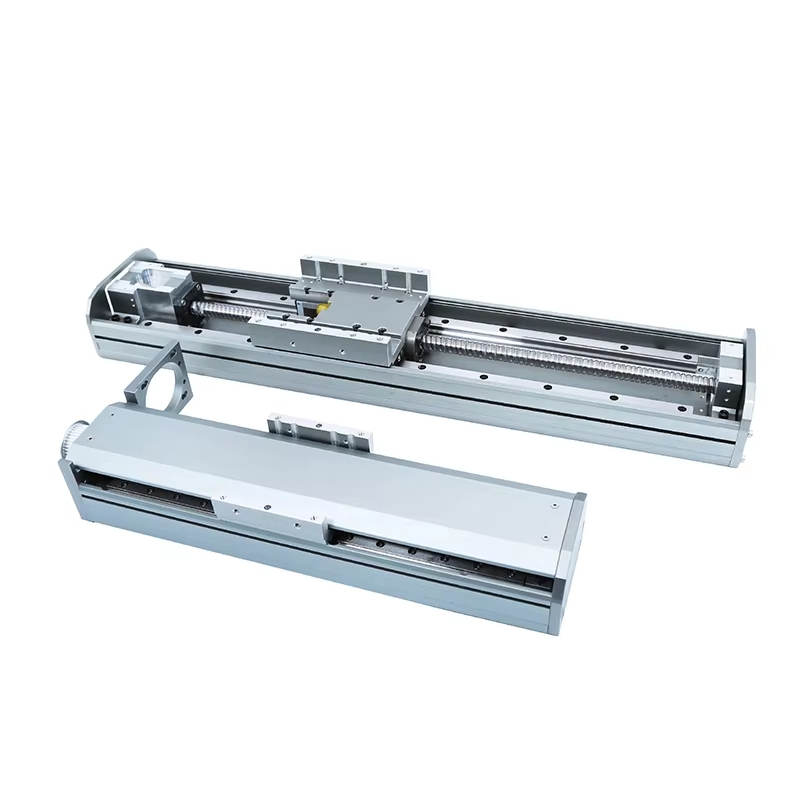

PINSI High Precision Ball Screw Driven Linear Slide Module Linear Guide
KA Series High-Precision Linear Modules | ±0.01mm Repeatability | 1000mm/s Speed
Engineered for High-Speed Automation with Micron-Level Accuracy
Product detail
Engineered for High-Speed Automation with Micron-Level Accuracy
The KA Series Linear Motion Modules provide industry-leading precision and velocity for demanding automation applications. Utilizing advanced ball screw drive technology, these linear actuators achieve repeatable positioning within ±0.01mm while reaching speeds up to 1000mm/s – making them the optimal solution for high-throughput precision systems.
Key Performance Advantages
Ultra-High Positioning Accuracy
● Repeatability: ±0.01mm (Precision Grade P option available)
● Dual-grade calibration: Standard (C) vs. Precision (P) for cost-performance optimization
Unmatched Operational Speed
● Maximum velocity: 1000mm/s (20mm lead at 3000 RPM)
● Dual-drive compatibility: Servo motors | Stepper motors
Rapid Deployment Design
● Patent-pending base design: Aligned threaded holes + through-hole channels
● 30% faster installation vs. conventional units
Flexible Stroke Configuration
● Custom travel lengths (application-optimized)
● Technical Note: Vibration-damped solutions available for >2m strokes
Universal Drive Integration
● Multi-mount system: Belt drives | Direct couplings
● Motor-specific ISO-standard adapter flanges included
Application
KA linear motion systems are deployed in precision-critical industries including:
● SMT Pick-and-Place Machines (High-speed component assembly)
● Medical Automation (Lab diagnostics, surgical robotics)
● Automated Optical Inspection (AOI)
● Pharmaceutical Packaging Lines
● Industrial Printing Machinery
Product parameters
