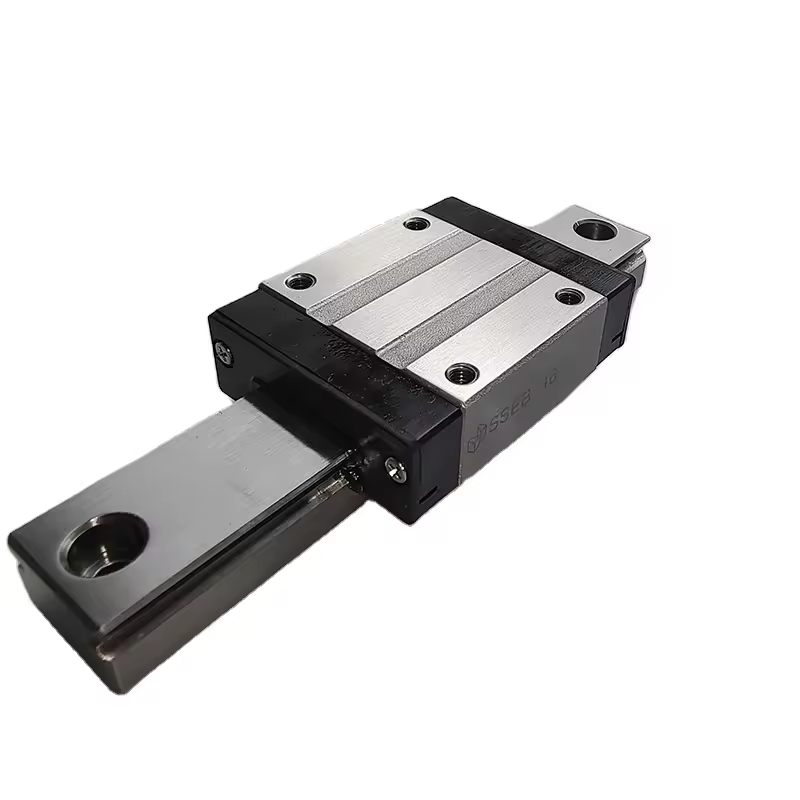

MISUMI SSEB16 Miniature Linear Guide Assembly Stainless Steel High Rigidity Guide Block & Rail
Product detail
The MISUMI SSEB16 is a miniature linear guide assembly consisting of a stainless steel rail and matching block. It belongs to MISUMI’s SSEB series of miniature guides, engineered for compact designs, smooth motion, and stable performance.
This guide is built for high rigidity relative to its size, offering superior load capacity among ball-type miniature guides. The SSEB16 variant typically features a unit height H = 16 mm and is available with various rail lengths (for example, 110 mm in the SSEB16-110 model).
MISUMI’s SSEB series supports configurable preload options (light preload or slight clearance), selectable accuracy grades, and optional lubrication or MX constant-lubrication attachments. Blocks and rails are shipped as matched sets (not individually sold) to ensure compatibility and performance.
Key Features
MISUMI Linear Guideway Linear Guide Block SSEB16 offers high rigidity and large permissible load. Ideal for various industries, including machinery repair.
✨ Compact / Miniature Design: Suitable for space-constrained systems and micro-motion applications
🏋️ High Rigidity for Size: Among the stronger ball-type miniature guides in its category
🔧 Stainless Steel Construction: Corrosion-resistant and durable under industrial conditions
🤏 Configurable Preload / Clearance: Choose light preload or slight clearance to match stiffness vs. smoothness requirements
🎯 Precision Grades Available: High grade and selectable accuracy to suit various tolerances
🧰 Matched Set Sales: Blocks and rails are pre-matched to ensure optimal performance; interchanging may void guarantees MISUMI+2MISUMI+2
💡 Optional Lubrication Accessories: Support for constant-lube units (e.g. MX type) and grease/lube attachments
🔇 Smooth, Low-Noise Operation via precision bearing paths and optimized geometry
Applications
The SSEB16 miniature linear guide is ideal for use in:
Precision instrumentation and metrology equipment
Compact automation modules and pick-and-place systems
Semiconductor and electronics assembly machinery
Medical devices and laboratory automation
Optical inspection and motion control stages
Micro-robotics and miniature motion platforms
