HSR15A Type Linear Guide Block High Precision Linear Motion Rail System for CNC Automation
| Item | Specification |
|---|---|
| Model | HSR15A Type |
| Rail Size | 15 mm |
| Block Type | A Type (Standard Length) |
| Guideway Structure | 4-row Circular Arc |
| Material | High Carbon Bearing Steel |
| Accuracy Grade | Normal / High (Optional) |
| Preload | Z0 / Z1 (Optional) |
| Lubrication | Grease |
| Mounting | Standard Top Mount |
| Application | CNC / Automation / Precision Equipment |

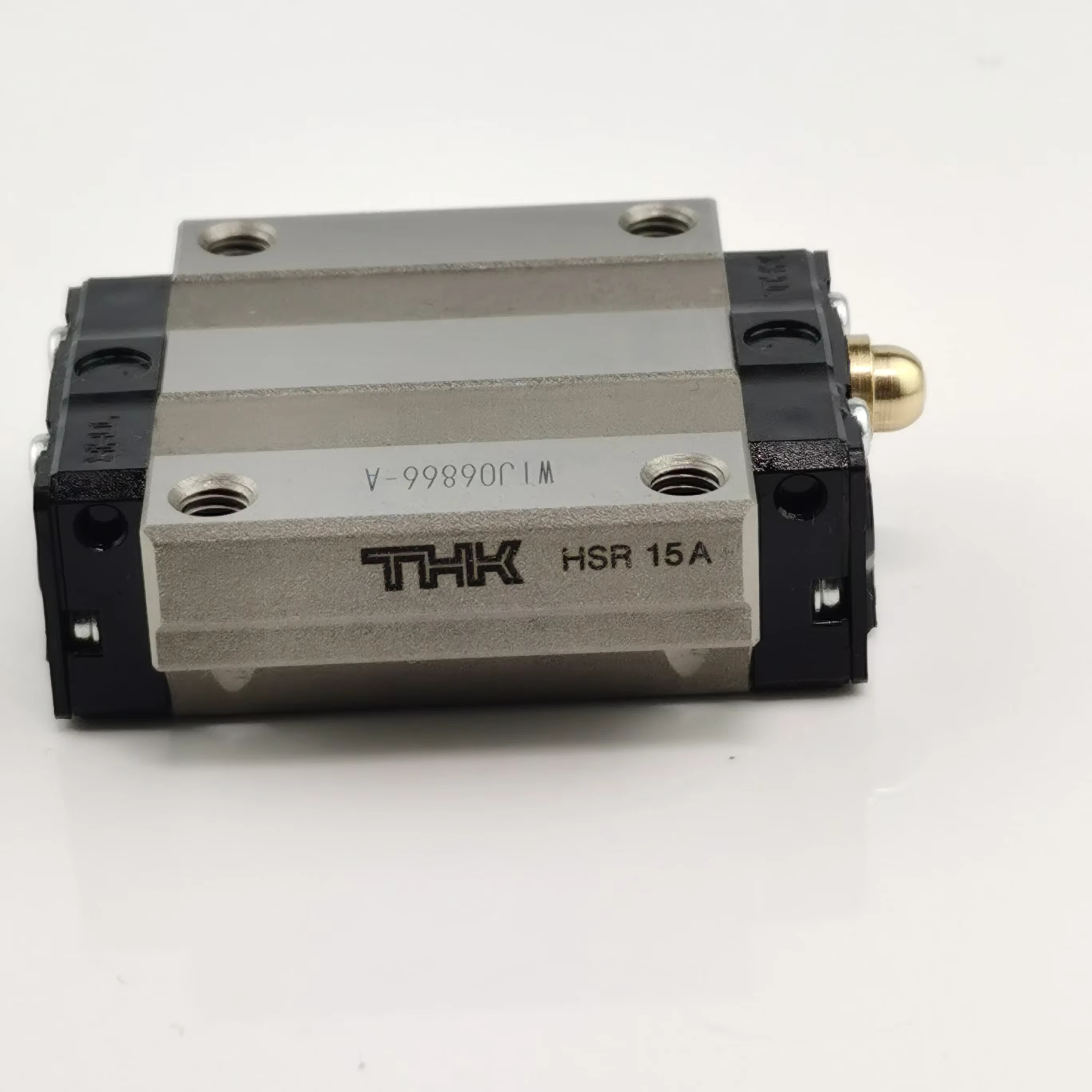

HSR15A Type Linear Guide Block
The HSR15A Type Linear Guide Block is a high-performance linear motion component designed for applications requiring precision, rigidity, and smooth operation.
With a 15mm rail size and A-type block structure, it is widely used in CNC machines, automation systems, and precision positioning equipment.
This linear guide adopts a four-row circular arc contact design, allowing it to withstand loads from multiple directions including radial, reverse radial, and lateral forces.
The optimized raceway geometry ensures smooth rolling motion, reduced friction, and stable accuracy even under continuous-duty operation.
Manufactured from high-quality bearing steel with advanced heat treatment, the HSR15A type linear guide block delivers excellent wear resistance and long service life.
Its standardized mounting dimensions make it fully compatible with HSR15A-type rail systems, enabling easy replacement and integration without redesign.
This solution is ideal for engineers and system integrators looking for a reliable, cost-effective linear motion guide for industrial and automation applications.
Key Features of HSR15A Type Linear Guide
HSR15A linear guide blocks are commonly used in CNC machining centers, linear modules, automation production lines, and precision equipment.
Their 15mm linear rail size makes them suitable for compact machinery while still providing high rigidity and load capacity.
Application
The HSR15A type linear guide is widely used in various industrial and automation fields, including:
CNC machining centers
CNC routers and engraving machines
Automation production lines
Linear modules and gantry systems
Semiconductor and inspection equipment
Precision positioning platforms
Its compact size and high rigidity make it particularly suitable for precision machinery with limited installation space.
Installation & Maintenance
Ensure proper rail parallelism during installation to achieve optimal accuracy.
Use recommended tightening torque for mounting bolts to avoid deformation.
Apply suitable lubrication regularly to reduce wear and extend service life.
Select preload level according to rigidity and motion requirements.
Correct installation and routine maintenance will significantly improve system performance and durability.
Customization & Supply Capability
We support flexible customization and stable supply for different project needs:
Rail length cutting according to requirement
Accuracy grade and preload selection
OEM labeling and packaging options
Bulk supply for industrial and automation projects
Technical support for application and selection guidance
Our linear motion solutions are designed to support long-term, reliable operation in industrial environments.
