HSR Series Linear Motion Guides for Industrial Applications
Series: HSR series
Model Size: 15/20/25/30/35/45/55/65
Load Capacity: High (up to ~50kN dynamic)
Precision: Ultra-high (±1μm)
Key Use Case: Precision CNC, robotics
Product Description

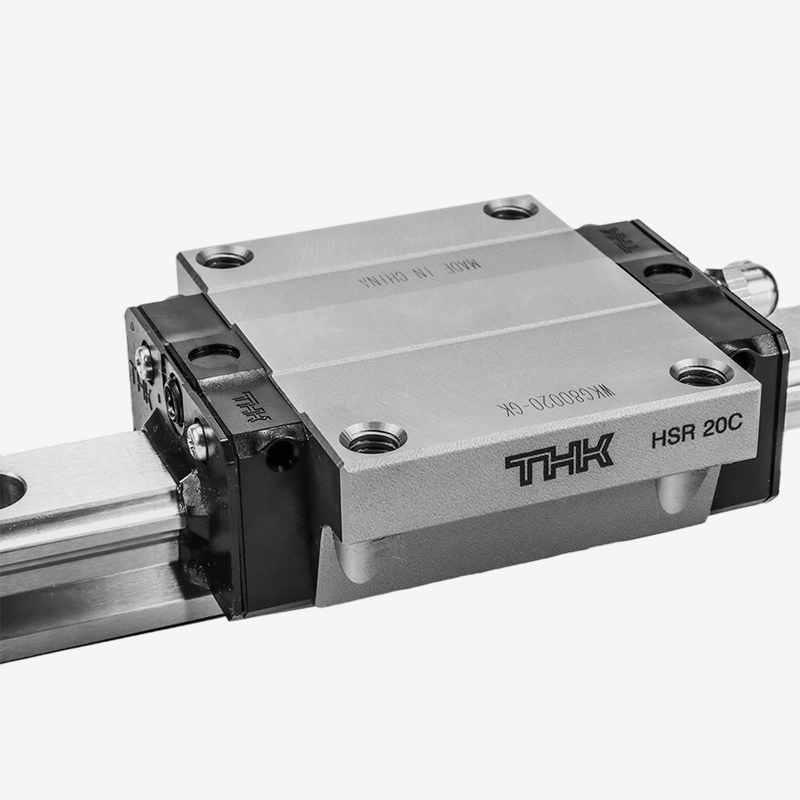

THK HSR Series Linear Guides
The HSR Series by THK is a flagship line of high-precision, heavy-duty linear motion guides designed for industrial automation, CNC machinery, and robotics. Known for its rigidity, smooth motion, and durability, the HSR Series is widely used in applications demanding accuracy under high loads.
Features of HSR Series
The HSR Series Linear Motion Guides guarantee precise and smooth motion in various industrial applications. Built with high-quality materials, they ensure reliable performance and long-lasting durability. Upgrade your machinery with HSR Series guides for improved efficiency and accuracy.
High Rigidity & Load Capacity
Robust rail and block design supports heavy radial, axial, and moment loads (dynamic load ratings up to 50kN+, depending on size).
Ideal for CNC machines, presses, and heavy automation.
Ultra-High Precision
Precision-ground rails and ballscrews achieve repeatability up to ±1μm (for P/SP-grade models).
Low Noise & Smooth Motion
Optimized ball recirculation reduces vibration and noise, suitable for cleanrooms and medical equipment.
Corrosion Resistance
Optional stainless steel rails or coatings (e.g., HSR-CA/HA models) for harsh environments (food processing, marine).
Advanced Sealing
Multi-layer seals (standard on HSR-A models) block dust, chips, and liquids, extending service life.
Modularity
Compatible with THK accessories (e.g., end seals, lubrication units) for easy customization.
Application Areas
● CNC Machines: High-speed milling, lathes, and machining centers.
● Industrial Robots: Articulated arms, transfer systems.
● Semiconductor Manufacturing: Wafer handling, lithography stages.
● Medical Equipment: MRI systems, surgical robots.
● Packaging Lines: High-speed pick-and-place systems.
