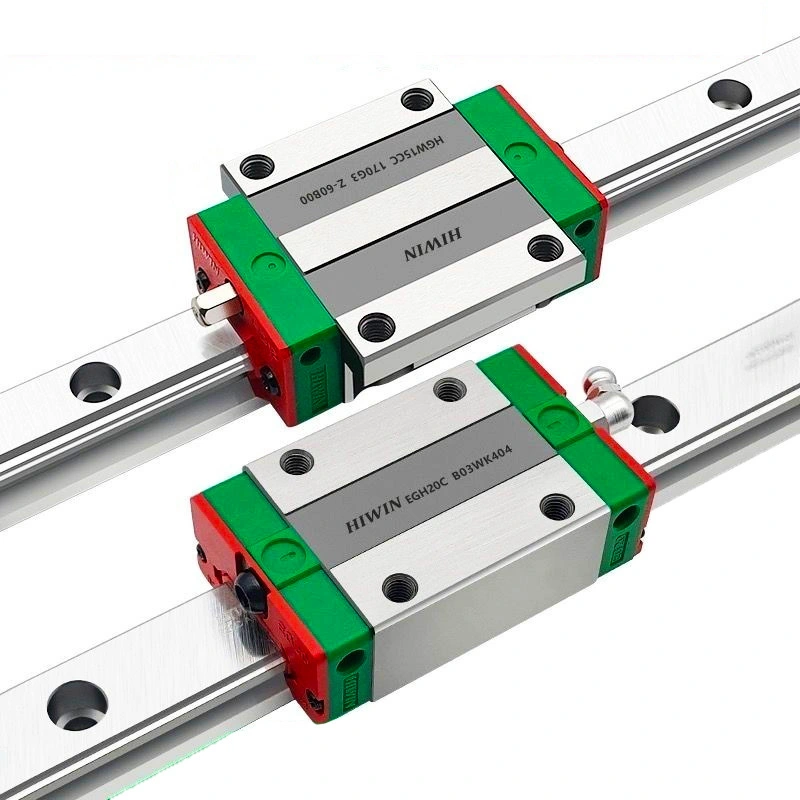

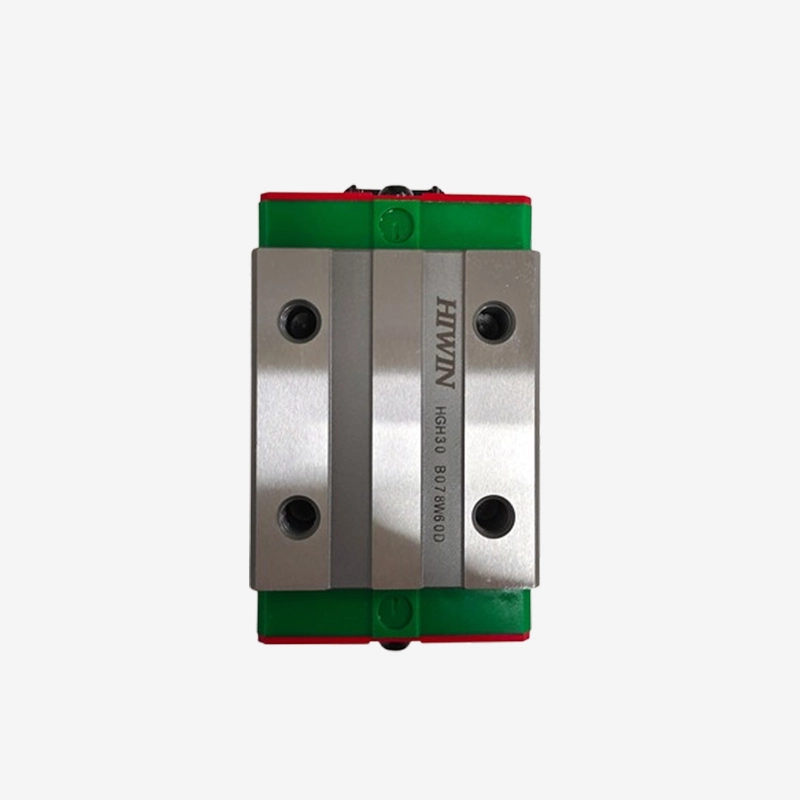

Hiwin HGH Series Linear Guide Block HGH15CA HGH20CA HGH25CA Linear Carriage Linear Rail CNC Parts
Item: HGH-HA/CA
Series: HG series
Block Type: Square type
Model Size: 15/20/25/30/35/45/55/65 mm
Load Type: Super heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Product Description
Hiwin Linear Guides
Hiwin Linear Guides are precision motion control components manufactured by Hiwin Technologies Corp. (Taiwan), widely used in industrial automation, CNC machinery, robotics, and semiconductor equipment. They provide smooth, accurate linear motion with high rigidity and durability.
Features of HG Series
Increase precision and performance with Hiwin Linear Guideway and Slide Block. Made with high-quality materials and advanced technology, this product ensures smooth and accurate linear motion for your applications. Upgrade your machinery with trusted Hiwin products.
High Precision
Achieve micron-level repeatability (e.g., ±2μm to ±10μm) for CNC machining, optics, and medical systems.
Robust Load Capacity
Handle radial, axial, and moment loads (dynamic loads up to 30kN+ in heavy-duty series like HG).
Rigidity & Stability
Reinforced rail and block designs minimize deflection under heavy loads or high-speed operation.
Low Friction & Smooth Motion
Precision-ground rails with ball/roller bearings ensure quiet, vibration-free movement.
Corrosion Resistance
Stainless steel or coated options for harsh environments (e.g., food processing, cleanrooms).
Modularity & Customization
Available in multiple sizes, preloads, seals, and lubrication options (grease or oil).
Easy Installation
Pre-drilled holes and alignment features simplify mounting and reduce setup time.
Applications
● CNC Machines: Axis movement for milling, cutting, and engraving.
● Robotics: Articulated arms, grippers, and automated guided vehicles (AGVs).
● Semiconductor: Wafer handling, lithography stages.
● Medical: MRI machines, surgical robots, lab automation.
● Packaging: High-speed pick-and-place, conveyor systems.
