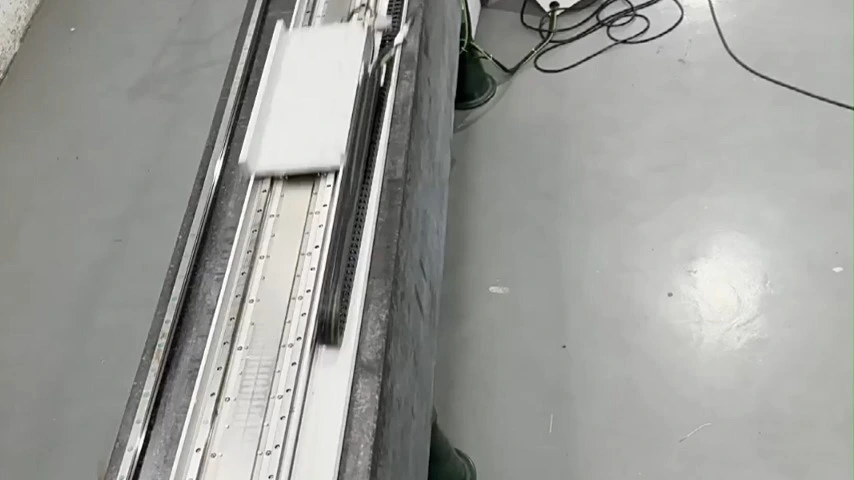

High Precision Iron Core Linear Motor Module
| Motor Type | Iron Core Linear Motor |
| Repeat Positioning Accuracy | ±1 μm |
| Max Speed | Up to 5 m/s |
| Max Acceleration | 10–30 m/s² |
| Rated Thrust | 100–1500 N |
| Structure | Magnetic Suspension, Non-Contact |
| Cooling | Natural / Water Cooling |
| Installation | Horizontal / Vertical |
| Control System | Servo Drive + Encoder Feedback |
| Application | Semiconductor, Laser Cutting, CNC, Automation |
Iron Core Linear Motors
The Iron Core Linear Motor Module is an advanced linear motion solution that delivers high precision, rapid response, and long-term reliability. Built with a magnetic suspension system, it provides direct-drive motion without mechanical friction—ensuring smooth performance and minimal maintenance needs.
Key Advantages
1️⃣ High Precision & Fast Response
Equipped with a dual-positioning feedback system, the actuator achieves repeat positioning accuracy within ±1μm. The direct-drive structure eliminates transmission errors, enabling instant acceleration and quick response for demanding industrial applications.
2️⃣ Smooth Motion & Low Noise
The motor’s magnetic suspension and low-friction surface guarantee exceptionally quiet operation. Its optimized structure minimizes vibration, providing stable and consistent motion even at high speeds.
3️⃣ Compact Design & Strong Thrust
Despite its compact size, the Iron Core Linear Motor delivers large thrust force and supports a wide stroke range. It’s perfectly suited for equipment requiring high dynamic performance and space efficiency.
Technical Features
Positioning Accuracy: ±1μm
Speed Capability: High-speed linear response
Structure Type: Iron core magnetic suspension
Operation: Smooth and silent
Maintenance: Nearly zero-maintenance
Customization: Available for OEM/ODM
Application
CNC machinery and automation systems
Semiconductor and electronics assembly
Laser cutting and inspection equipment
Industrial robotics and precision motion platforms
