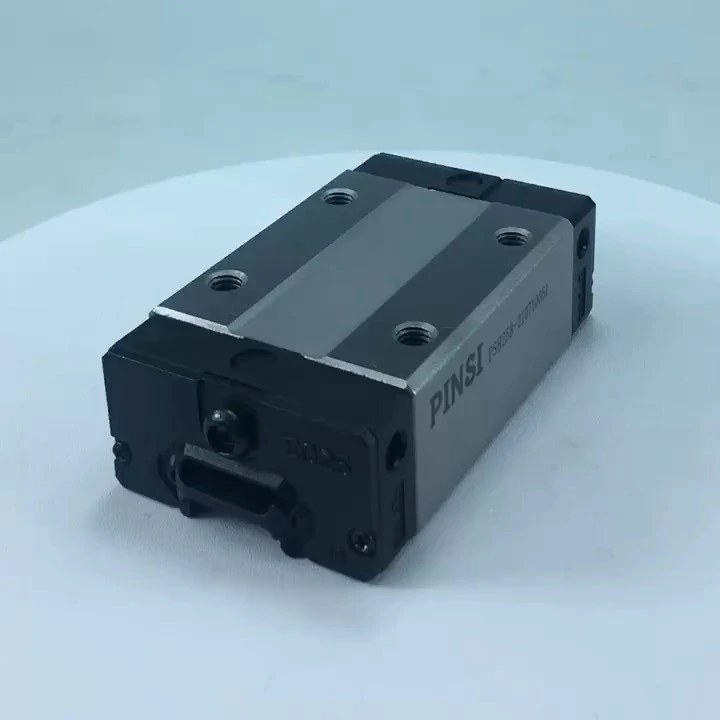

EG Series Economical Light-Load High-Speed Linear Guides
Item # : EGH-CA/SA
Series: EG series
Block Type: Square type
Model Size : 15/20/25/30/35 mm
Product Description
EG Series Linear Guide
EG Series is an economical linear guide solution emphasizing cost-effectiveness and compact design. It is ideal for light-to-medium load, high-speed, and space-constrained applications.
Compact & Space-Saving Design:
The EGH15 is a miniature linear guide with a small cross-section, making it ideal for compact devices and applications with limited space.
High Rigidity & Load Capacity
Despite its small size, it is designed to handle significant loads, including moments in all directions (radial, reverse-radial, and lateral), ensuring stable and precise movement.
Smooth & Precise Motion
Features a recirculating ball bearing system between the block and rail, providing low friction, high-speed capability, and precise linear guidance.
Enhanced Durability & Protection
Equipped with efficient sealing strips (end seals and scrapers) to prevent dust, chips, and other contaminants from entering the critical ball recirculation area, extending service life.
Easy Installation & Interchangeability
Designed with standard dimensions for easy integration. The rail can often be used interchangeably with other brands of the same size series, offering flexibility.
Applications
The Pinsi EGH15 linear guide is suitable for a wide range of automated equipment requiring precise and reliable linear motion, including:
Desktop CNC Machines & 3D Printers: For guiding gantries, print heads, and spindles.
Precision Inspection & Measuring Equipment: Optical stages, sensor slides, and probe positioning systems.
Electronic Component Assembly: Pick-and-place machines, wire bonders.
Medical & Laboratory Automation: Small-scale analyzers, sample handling systems.
General Industrial Automation: Small actuators, sliding doors, and linear stages where compact size is critical.
