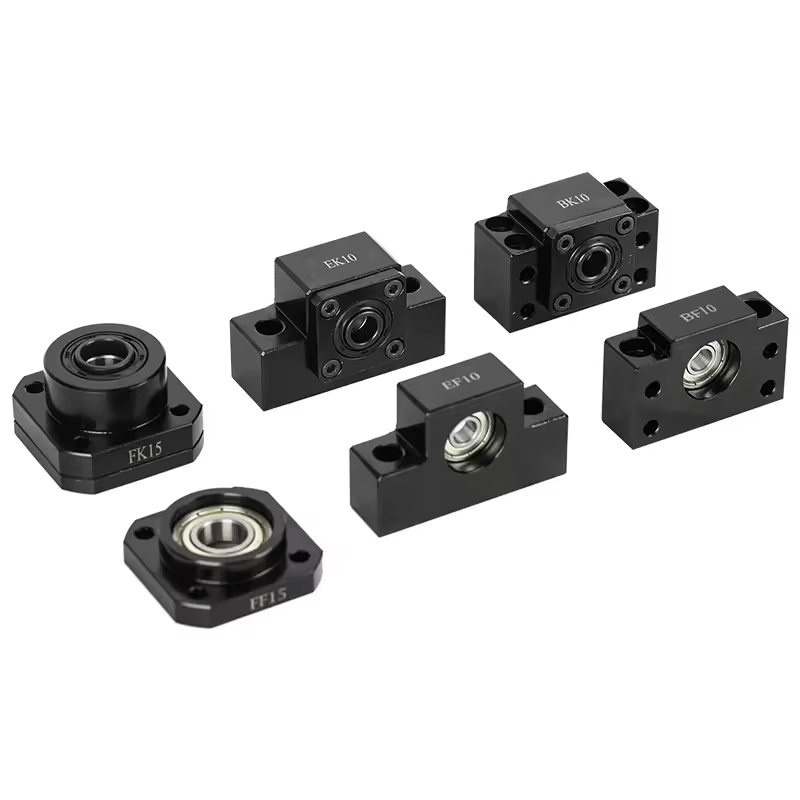

BK10 / BF10 Ball Screw Support Units Precision Fixed & Floating End Supports for CNC Linear Motion Systems
| Parameter | BK10 (Fixed) | BF10 (Floating) |
|---|---|---|
| Shaft Size | φ10 mm | φ10 mm |
| Applicable Ball Screw | SFU1605 / 1610 / 2005 Series | SFU1605 / 1610 / 2005 Series |
| Bearing Type | 7000 Series Angular Contact | Deep Groove Ball Bearing |
| Material | Bearing Steel (SUJ2) | Bearing Steel (SUJ2) |
| Surface Treatment | Black Oxide / Nickel Plating | Black Oxide / Nickel Plating |
| Mounting Type | Flange Mount | Flange Mount |
| Preload Type | Light Preload (Zero Backlash) | Free End (Floating) |
| Max Speed | 6000 rpm | 6000 rpm |
| Max Axial Load | 500–800 N | 300–500 N |
| Operating Temperature | –20°C ~ +100°C | –20°C ~ +100°C |
Product detail
The BK10 / BF10 Ball Screw Support Units are high-precision end supports designed to provide stable and accurate mounting for ball screws in CNC machines, automation systems, and linear modules.
Each set consists of:
BK10 (Fixed End Support) — equipped with preloaded angular contact bearings, ensuring high rigidity and zero axial play.
BF10 (Floating End Support) — designed for smooth shaft rotation and thermal expansion compensation.
These supports are manufactured from high-quality bearing steel with precise machining and surface treatment, ensuring low noise, high durability, and superior alignment accuracy during high-speed motion.
Key Features
🔹 High Precision Bearing Design — Angular contact bearings with preload minimize axial play.
-
🔹 Rigid and Stable Support — Provides excellent shaft alignment and reduces vibration.
-
🔹 Durable Material — Made of high-strength bearing steel with black oxide coating.
-
🔹 Smooth Operation — Supports high-speed, low-noise rotation.
-
🔹 Easy Assembly — Compact structure with simple mounting interface.
-
🔹 Corrosion & Wear Resistance — Long service life under continuous load.
-
🔹 Compatible with Multiple Ball Screw Sizes — Standard fit for SFU/SFS/DFU1605, 1610, 2005, etc.
Product parameters
Applications
CNC milling and engraving machines
Linear actuators and motion modules
3D printers and automation equipment
Robotics and precision positioning systems
Ball screw drive systems (SFU/SFS/DFU types)
