What is the Core Function of a Ball Screw in CNC Machinery?

CNC (Computer Numerical Control) machining is a cornerstone of modern manufacturing, enabling precise fabrication of complex parts with high efficiency and accuracy. At the heart of many CNC machines lies a critical component: the ball screw. This mechanical device is responsible for converting rotary motion into linear motion, ensuring the precise movement of the machine's axes. Understanding the role, benefits, and best practices associated with ball screws is essential for optimizing CNC machining performance.

Introduction to Ball Screws in CNC Machining

Overview of Ball Screws and Their Importance in CNC Machining

Ball screws are a type of screw that uses a nut with a helical groove and balls that roll within this groove to achieve high precision and efficiency in motion control. The balls recirculate within the nut, allowing for smooth, low-friction translation of rotational motion into linear motion. This mechanism is crucial in CNC machining for achieving the high accuracy and repeatability required in manufacturing complex parts. Pinsi, a reputable manufacturer and supplier with over 13 years of experience, offers high-quality ball screws that are widely used in CNC machinery, ensuring consistent and precise performance.

Brief History and Evolution of Ball Screws

The concept of the ball screw dates back to the early 20th century, but significant advancements in design, materials, and manufacturing processes have continually improved their performance and applicability. Initially used in applications requiring high precision, such as aerospace and precision machinery, ball screws have become ubiquitous in CNC machining due to their ability to provide precise, repeatable motion with minimal backlash. Pinsi has played a significant role in advancing the use of ball screws in CNC machinery, offering precision-ground components that meet stringent industrial standards.

Key Benefits of Using Ball Screws in CNC Applications

The use of ball screws in CNC machining offers several key benefits:

• High Precision and Accuracy: Ball screws provide precise linear motion with minimal deviation, ensuring that parts are manufactured to exact specifications.
• Low Backlash: The design of ball screws minimizes backlash, or the play between the screw and nut, which is critical for achieving accurate and repeatable machining operations.
• High Efficiency: By reducing friction through the use of rolling balls, ball screws achieve higher efficiency compared to traditional lead screws, resulting in less energy consumption and heat generation.
• Long Service Life: With proper maintenance, ball screws can have a long service life, reducing the need for frequent replacements and minimizing downtime.

Construction and Design of Ball Screws

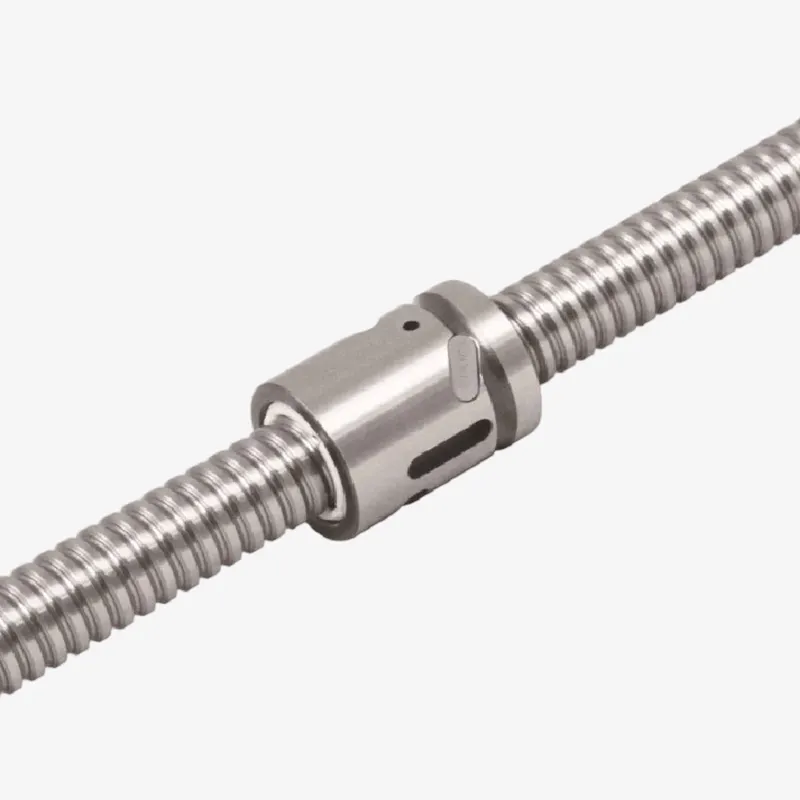

Components of a Ball Screw

A ball screw is a mechanical linear actuator that consists of several key components:

• Screw Shaft: This is the threaded part that forms the core of the ball screw. It is typically made of high-grade steel or other strong materials.
• Nut: This component houses the ball bearings and moves along the screw shaft, translating rotational motion into linear motion.
• Ball Bearings: Rolling balls in the nut reduce friction and ensure smooth motion, minimizing wear and tear.
• Recirculation System: A mechanism that ensures the balls return seamlessly to the beginning of the circuit after they exit the helical groove. This system is critical for maintaining consistent motion and longevity.

Working Principle of Ball Screws in CNC Systems

In CNC machines, the motor drives the ball screw, causing the nut to move along the screw shaft. This movement translates into precise linear motion, which is crucial for operations like milling, drilling, and cutting. The conversion of rotational to linear motion is efficient and smooth, with minimal energy loss. This principle is integral to the high precision and efficiency demanded in CNC machining processes.

Precision and Efficiency

Precision and Accuracy

The precision of ball screws outperforms other lead screws due to the rolling ball bearings, which drastically reduce friction. This enhances the machine's efficiency, resulting in faster output with less wear and tear. Pinsi's ball screws are precision-ground to ensure exact movements and accuracy, making them ideal for high-precision applications.

Low Friction

Friction is a significant factor in energy loss within mechanical systems. Ball screws utilize ball bearings to reduce friction, ensuring that less energy is lost during motion. This efficiency translates to faster machine operation, reduced energy consumption, and minimal heat generation. Pinsi's ball screws are engineered to minimize friction, contributing to the overall smooth and efficient performance of CNC machinery.

Long Service Life

With proper maintenance, ball screws can have a service life of up to 15 years, making them an excellent investment for CNC machinery applications. Regular lubrication and cleaning practices help extend the lifespan of ball screws, ensuring consistent performance over time. Pinsi's ball screws are designed to handle high loads and long operational cycles, providing reliable performance in demanding CNC applications.

Benefits in CNC Applications

High Precision Machining

One of the primary benefits of using ball screws in CNC machinery is their ability to ensure high precision machining. Ball screws provide precise linear motion, making them indispensable for intricate and detailed machining processes. CNC machines equipped with Pinsi's ball screws can achieve tight tolerances and accurate results, making them suitable for applications that require high precision.

Reduced Power Consumption

The efficient transfer of motion in ball screws reduces power consumption, contributing to the overall energy efficiency of CNC machines. Ball screws minimize energy loss during motion, leading to faster and more efficient machining operations. This efficiency is a significant advantage for manufacturers looking to reduce energy costs and improve production efficiency.

Minimal Backlash

Unlike traditional lead screws, ball screws provide minimal backlash, ensuring that there is no play in the system. This is crucial for maintaining accuracy during machining operations, as even small amounts of backlash can lead to inaccuracies in the final product. Pinsi's ball screws are designed to minimize backlash, offering reliable and accurate motion control in CNC applications.

High Load Capacity

Ball screws are capable of handling heavy loads while maintaining smooth and precise motion, making them suitable for a wide range of machining applications. Whether it's heavy-duty machining operations or lightweight applications, Pinsi's ball screws can provide the necessary support and precision required for optimal performance.

Challenges and Maintenance

Thermal Expansion

Thermal expansion is a common issue that can affect the performance of ball screws in CNC machinery. Pinsi recommends implementing cooling systems and periodic checks to mitigate the effects of thermal expansion. Regular monitoring and adjustments can help maintain optimal performance and prevent any negative impacts on machining accuracy.

Regular Maintenance Practices

Maintaining ball screws regularly is crucial for ensuring their longevity and optimal performance. Following these practices can help extend the service life of ball screws:

• Regular Lubrication: Ensuring proper lubrication minimizes friction and prevents wear. Regular greasing or oiling, as recommended by the manufacturer, should be carried out to maintain the ball screw's performance.
• Cleaning: Regular cleaning helps remove any contaminants or debris that may accumulate on the ball screw. Pinsi's ball screws are designed to be easy to clean and maintain.
• Alignment: Proper alignment of the ball screw is essential to prevent uneven wear and stress. Regular inspections and adjustments can help maintain optimal alignment.

Lubrication Practices

Lubrication is a critical aspect of ball screw maintenance. Using the correct lubricant and maintaining the appropriate quantity is essential for extending the ball screw's service life and ensuring smooth operation. Pinsi recommends using a specific type of lubricant and following the recommended intervals for lubrication. This helps reduce friction and wear, maintaining the ball screw's efficiency and performance over time.

Ball Screw vs. Alternatives

Comparison with Lead Screws

The main difference between a ball screw and a lead screw lies in the mechanism used to transfer motion. Ball screws use ball bearings to reduce friction and provide more precise movement, while lead screws typically rely on sliding contact between the screw and nut, which results in less efficiency and accuracy. While lead screws are often used in simpler and cost-effective applications, ball screws are preferred for applications requiring high precision and efficiency.

Ball Screw vs. Roller Screws

Roller screws, also known as cylindrical roller screws or roller worms, are another alternative to ball screws. They are similar to ball screws in that they use rolling elements to reduce friction, but they have multiple contact lines between the screw and the nut, providing higher load capacity and stiffness in a smaller package. Roller screws are ideal for high-force and high-duty applications, while ball screws are preferred for high-efficiency and low-heat applications.

Choosing the Best Ball Screw CNC Machine

Factors to Consider

When selecting a CNC machine with ball screws, several factors need to be considered to ensure optimal performance and reliability. Pinsi's expertise in providing high-quality ball screws ensures that manufacturers can make informed decisions based on specific application requirements.

Precision Requirements

Evaluate the precision requirements of the application to determine the appropriate ball screw specifications. Precision-ground ball screws are ideal for applications requiring high precision, while rolled ball screws may be sufficient for applications with less demanding accuracy needs.

Load and Speed Requirements

Assess the maximum load and speed the ball screw will handle. This information helps in selecting the appropriate ball screw size and type based on the specific operational needs of the CNC machine. Pinsi's ball screws are designed for a range of load and speed requirements, making them suitable for various applications.

Environmental Conditions

Consider the environmental conditions in which the CNC machine will operate. Factors such as temperature and exposure to contaminants can affect the ball screw's performance and longevity. Pinsi's ball screws are engineered to withstand various environmental conditions, ensuring reliable performance in harsh environments.

Maintenance and Service Life

Choose a ball screw that meets the specific maintenance needs and expected service life of the CNC machine. Regular maintenance and proper care can help extend the ball screw's service life, reducing downtime and maintenance costs. Pinsi's ball screws are designed to be easy to maintain, simplifying the maintenance process for manufacturers.

Practical Examples and Case Studies

Real-world Applications

Ball screws find applications across various CNC machinery, from lathes and mills to 3D printers. Their role in converting rotational to linear motion ensures versatility and broad usability across industries. Case studies and examples of how Pinsi's ball screws have been successfully implemented in CNC machinery can provide valuable insights into their practical benefits and performance.

Industrial Applications

Ball screws are used in industrial robots, aircraft, and many systems requiring precise linear motion control. Their reliability and precision make them essential components in high-precision applications.

FAQs and Troubleshooting Tips

FAQs

Q: What is the main advantage of using ball screws in CNC machining?

A: One of the primary advantages is their ability to provide high precision and accuracy with low backlash, making them ideal for applications requiring precise linear motion.

Q: How often should ball screws be lubricated?

A: The lubrication frequency depends on the manufacturer's recommendations and the operating conditions. Generally, it's advisable to follow the manufacturer's guidelines for lubrication intervals.

Q: Can rolled ball screws be used in high-precision applications?

A: While rolled ball screws are less precise than precision-ground ball screws, they can still be used in applications where moderate precision is acceptable. However, for high-precision applications, precision-ground ball screws are typically preferred.

Q: What factors affect the service life of a ball screw?

A: Factors such as load, speed, lubrication, and environmental conditions can all impact the service life of a ball screw. Proper maintenance and operation within specified parameters are crucial for maximizing service life. Pinsi provides detailed guidelines for maintaining ball screws to ensure optimal performance and longevity.

Troubleshooting Tips

Backlash Control

To control backlash, use CNC ballscrews with preload. Common methods include oversized balls, tensioned double-nut, or lead-shift single nut. These methods remove axial play and increase stiffness, but too much preload adds torque and wear. Choose the lightest preload necessary to achieve desired rigidity.

Efficiency and Servo Sizing

Ball screw linear actuators are highly efficient, with efficiencies up to 90%, compared to 20-40% for acme or lead screws. This high efficiency means less motor torque is required for the same thrust, reducing heat generation and improving overall machine stability. Proper sizing of the servo motor and ball screw ensures optimal performance and efficiency.

Accuracy Grades and Standards

JIS B1192 and ISO 3408 specify grades C0-C10 by lead error. C0-C1 are for metrology and ultra-precision applications, C3 for high-precision CNC, C5 for general CNC, and C7-C10 for industrial positioning where cost prioritizes over microns. C3 and C5 are the most common choices for CNC axes.

Case Studies

Example 1: Precision CNC Lathe

Pinsi's ball screws were integrated into a precision CNC lathe used for manufacturing high-precision parts. The use of precision-ground ball screws ensured that the lathe could achieve tight tolerances and make intricate parts with exceptional accuracy. The lathe demonstrated consistent performance and reliability, with no significant issues during operation. The manufacturer reported a significant improvement in machining accuracy and efficiency since implementing Pinsi's ball screws.

Example 2: High-Speed CNC Router

A high-speed CNC router equipped with Pinsi's high-efficiency ball screws was used to cut intricate designs on various materials. The ball screws allowed for smooth and precise motion, resulting in excellent surface finish and minimal waste. The performance of the CNC router was improved significantly, with reduced cycle times and increased throughput.

Conclusion

Recap and Final Thoughts

Mastering the use of ball screws in CNC machining is crucial for achieving high precision, efficiency, and reliability in manufacturing operations. Pinsi's ball screws offer several advantages, including high precision, reduced friction, low backlash, and long service life. Understanding the different types of ball screws, their applications, and best practices for their use and maintenance can help manufacturers optimize their CNC machining processes.

Whether you're involved in precision engineering or general machinery manufacturing, the insights provided in this guide can help you make informed decisions about ball screw selection and implementation. Pinsi's expertise and high-quality ball screws ensure reliable and precise performance in CNC machinery applications.
