What Are the Different Types of Coupling Explained Simply?

Introduction to Coupling Basics

A coupling is a mechanical component used to connect two shafts in order to transmit power or torque between them. While the fundamental role of a coupling is to enable efficient power transmission, it also offers secondary benefits such as accommodating misalignment, reducing shock loads, and protecting components from damage. Understanding the various types of couplings can help in selecting the right one for specific mechanical applications.

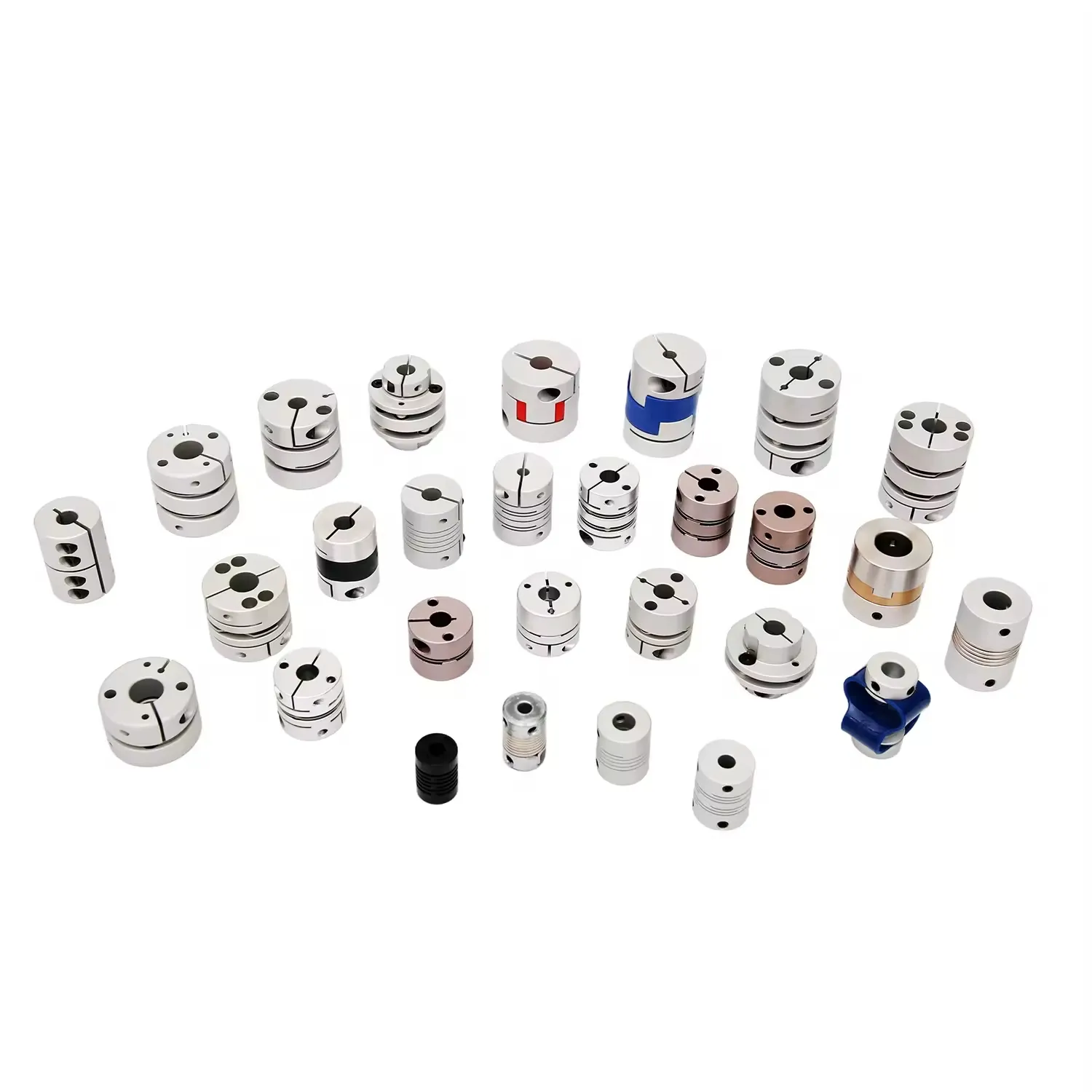

Detailed Overview of Different Types of Couplings

1. Rigid Couplings

Rigid couplings provide a solid connection between two shafts and do not allow any relative movement. They require precise alignment between the two shafts, making them ideal for applications where alignment accuracy is paramount. Here are some common types of rigid couplings:

Sleeve or Muff Coupling

• Description: A simple and economical coupling type, often used where modest torque is transmitted.
• Components: Consists of a hollow cylinder (sleeve or muff) placed over the ends of the shafts, fitted tightly with keyway to ensure no slippage.
• Applications: Suited for reliably transmitting medium torque in applications like conveyor drives and spur gear drives.

Flange Coupling

• Description: Consists of two flanges connected with bolts, providing a secure, rigid connection.
• Components: Two flanged hubs bolted together to hold the shafts securely.
• Applications: Ideal for heavy-duty machinery where high torque and alignment are critical.

Clamp or Split-Muff Coupling

• Description: Delivers enhanced flexibility with a split sleeve design that accommodates small misalignments.
• Components: The sleeve is split into two parts held together by bolts.
• Applications: Used where there is a need for slight axial or angular misalignment, common in industrial pumps.

2. Flexible Couplings

Flexible couplings, on the other hand, are designed to transmit torque between two shafts while accommodating misalignments, shock loads, and vibrations. They offer flexibility without the need for perfect alignment between the shafts.

Bushed Pin-Type Coupling

• Description: Provides higher flexibility with rubber bushings used to absorb vibrations.
• Components: Rubber or leather bushes fitted between the pins.
• Applications: Suitable for linkage in applications where slight misalignment and vibration absorption are required.

Oldham Coupling

• Description: A multi-piece design with three discs connected by tongue and groove arrangements.
• Components: Consists of input, output, and middle discs with tongue and groove mechanism.
• Applications: Great for off-center misalignment in high-speed machinery like CNC systems.

Universal Coupling (Hooke's Joint)

• Description: Offers high flexibility in both radial and angular misalignment.
• Components: Consists of two yokes connected with a cross shaft.
• Applications: Ideal for applications requiring high angular misalignment, such as automotive driveshafts.

Gear Coupling

• Description: High-strength coupling using gears for torque transmission.
• Components: Includes two hubs or caps connected by pins.
• Applications: Suitable for high-torque applications, such. mechanical drives and machinery with high power requirements.

Universal Joint

• Description: Allows torque transmission at high angular misalignment.
• Components: Features cross and yokes connected by a ball joint.
• Applications: Commonly used in automotive and heavy machinery where shaft misalignment is significant.

Jaw Coupling

• Description: Flexible coupling designed to absorb misalignment.
• Components: Comprises a hub with inset elastomeric insert.
• Applications: Efficient in protecting machinery from torsional loadings and to dampen vibrations.

Applications, Advantages, and Disadvantages of Couplings

Couplings are used in a wide array of mechanical and industrial applications. The choice of coupling type depends on the specific needs of the system, the environment, and operating conditions. Below is a detailed comparison of the common types of couplings:

Role of Couplings in Various Industries

Couplings are critical components in a wide range of industries, including manufacturing, automotive, energy, marine, and HVAC systems. Below is a table showcasing common applications and industries that extensively use couplings:

Tips for Choosing the Right Coupling

Selecting the appropriate coupling is crucial for ensuring optimized performance and longevity of machinery. Here are some key factors to consider:

• Torque Rating: Ensure the coupling can handle the torque required by the application.
• Shaft Size and Alignment: Couplings should fit perfectly onto shafts without damaging them.
• Alignment Requirements: Check the degree of alignment required between the two shafts.
• Operating Speed: Consider the speed of the shafts in operation.
• Load Type: Determine whether the load is steady, variable, or shock-loaded.
• Maintenance Needs: Assess the maintenance requirements for ease of use over time.
• Environmental Conditions: Consider temperature, moisture, chemicals, and other environmental factors.

Conclusion

Understanding the different types of couplings and their applications is crucial for engineers, technicians, and other professionals working with rotating machinery. Whether you need a simple flexible coupling or a high-torque gear coupling, selecting the right type can significantly enhance the efficiency and durability of your machinery.

In summary, couplings are indispensable components in any mechanical system that requires the transmission of power from one shaft to another. By considering factors such as alignment, shaft-to-shaft flexibility, torque capacity, and ease of maintenance, you can make an informed decision on the most appropriate coupling type. At Pinsi, we offer a wide range of high-quality couplings designed to meet industrial standards and ensure optimal performance in a variety of applications.

Pinsi, as a reputable manufacturer and supplier with over 13 years of experience in delivering high-quality linear motion solutions, is committed to producing reliable and efficient couplings for your machinery needs. Whether for CNC machinery, industrial equipment, or automation systems, Pinsi provides a comprehensive solution for coupling requirements.

For more detailed information and assistance in selecting the right coupling for your application, visit our website or contact our expert team for personalized assistance.
